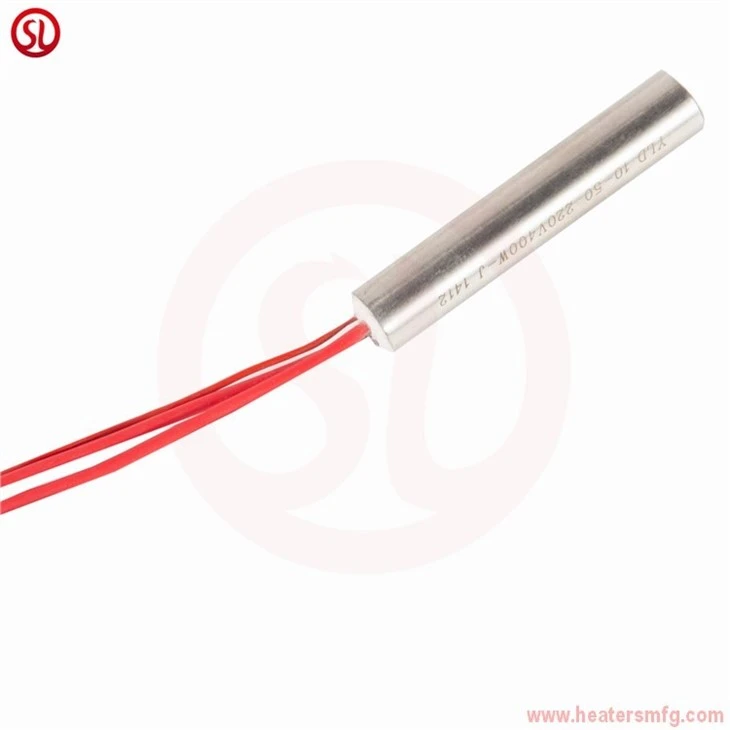

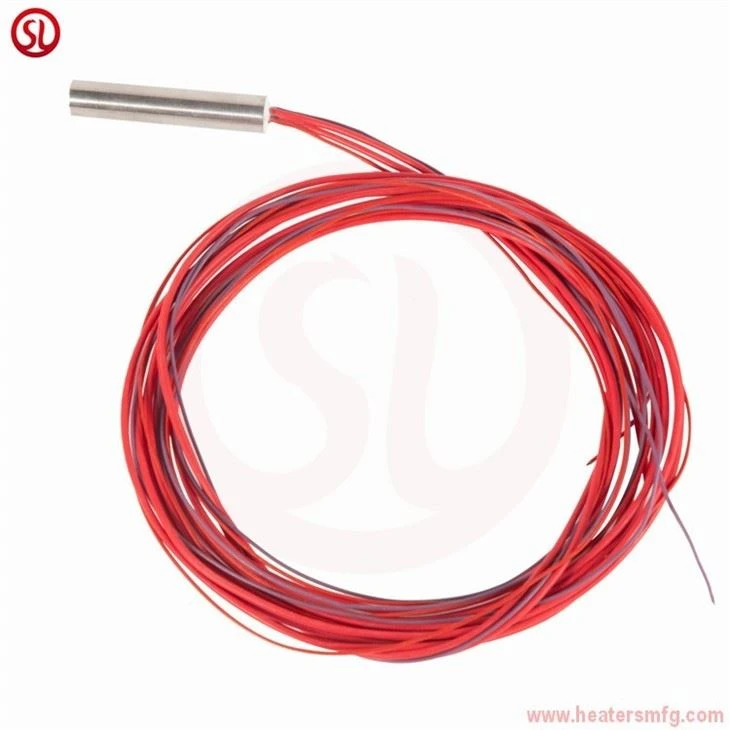

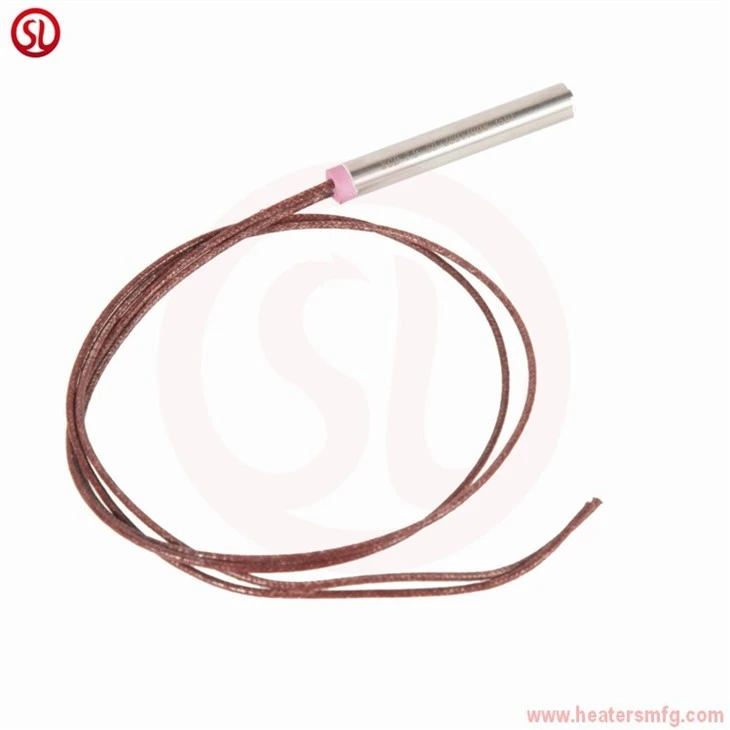

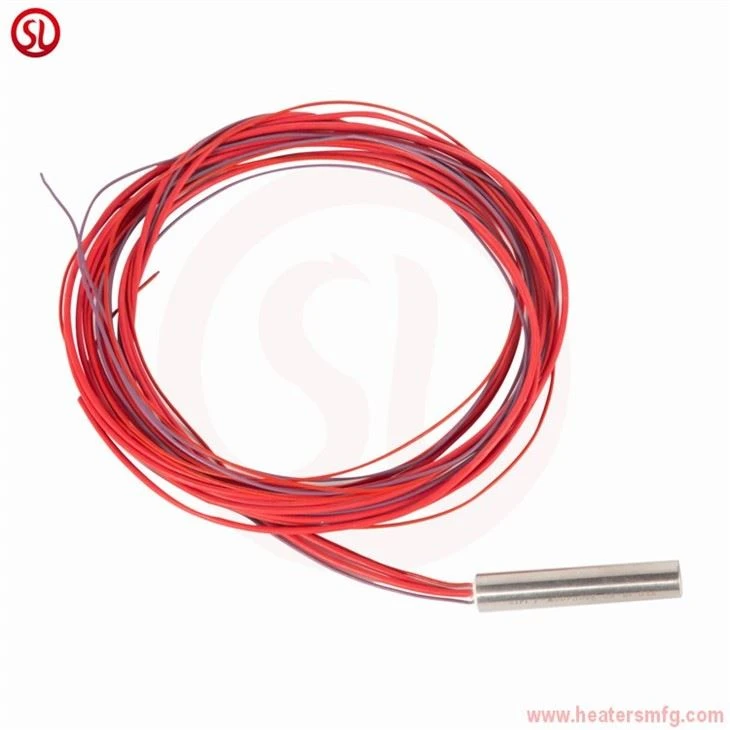

Small Diameter Micro Cartridge Heater
As a manufacturer of heater elements, we can produce small diameter micro cartridge heater according to customer requirements.all of small diameter cartridge heater made by the imported first class raw materials. the smallest diameter can be 1.5mm, and the length and power can be customized custom made.

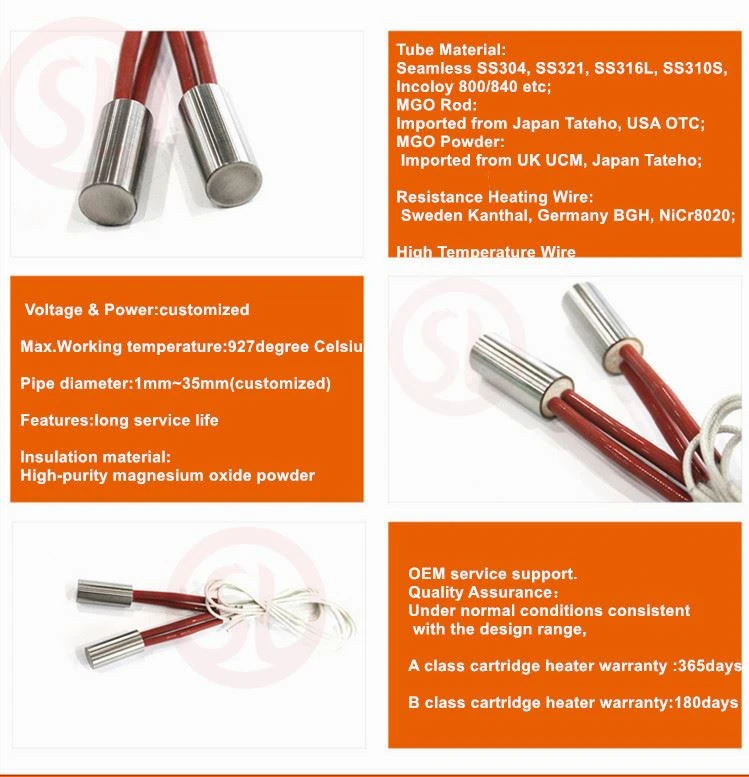

The main technical parameters of Small Diameter Micro Cartridge Heater
Tube diameter | 2mm-40mm |
Tube Length | 20mm-5000mm |
Resistance heating wire | NiCr 80/20 wire |
Voltage | 12V/24V/36V/48V/120V/220V/230V/380V |
Tube material | Stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
Insulation Material | High-Purity Mgo |
Thermocouple Location | Type J / Type K |
Small diameter micro cartridge heater applications:
Making Machine
Banding Machine
Packing Machine
3D printer
Mold heating
Sealer
FAQ
Q: Can I customize the cartridge heater base on my application?
A: yes, can customize the pencil heater to meet your needs.
Q:Can I print my logo in the heater?
A:Yes, we can print the logo in the heater if you need.
Q:What's production time?
A: the production time is base on the order qty, the detail time will be confirmed when you order.
Q：What's MOQ of pencil heater mininature cartridge heater?
A: the MOQ is 5pcs;
