High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that
is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
Resistance heating wire | NiCr 80/20 wire |
Sheath | stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
Tube diameter | Min is 3mm, max is 30mm |
Tube length | min is 15mm max is 3meter. |
Maximum temperature | 870 degree Celsius |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Voltages available | 380V,240V, 220V,110V,36V,24V or 12V |
Length tolerance | ±1 mm |
Diameter tolerance | -0.02mm |
Standard Cold Zone | 5-10mm |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Thermocouple Location | type J |
| type K |

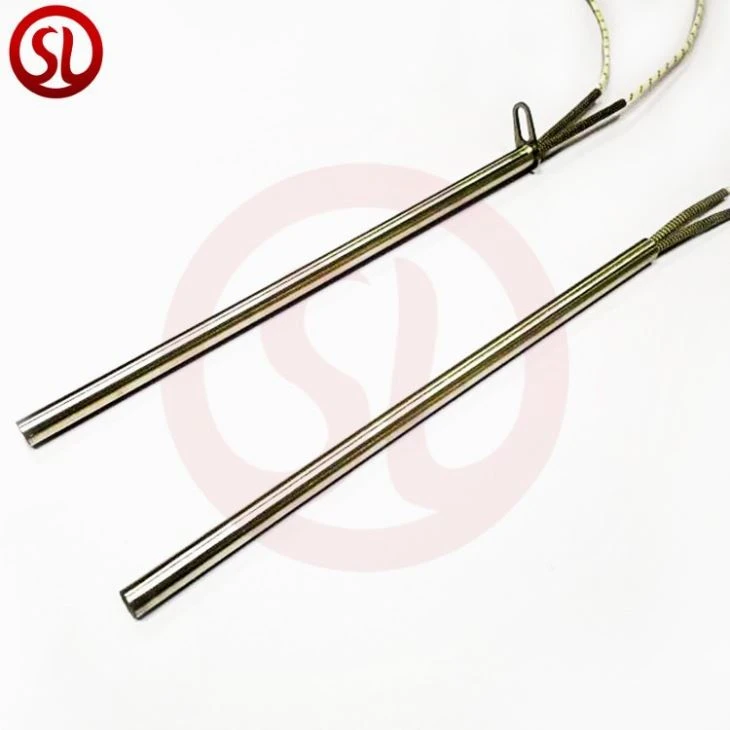

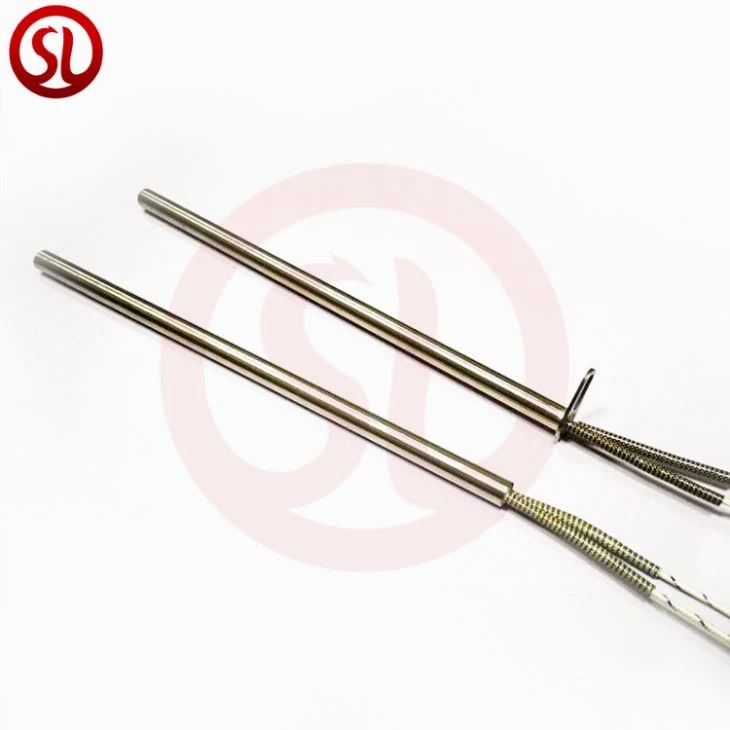

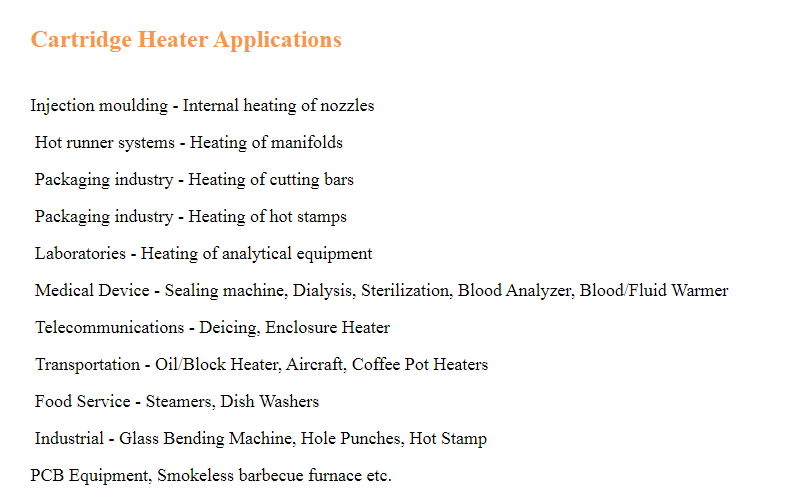

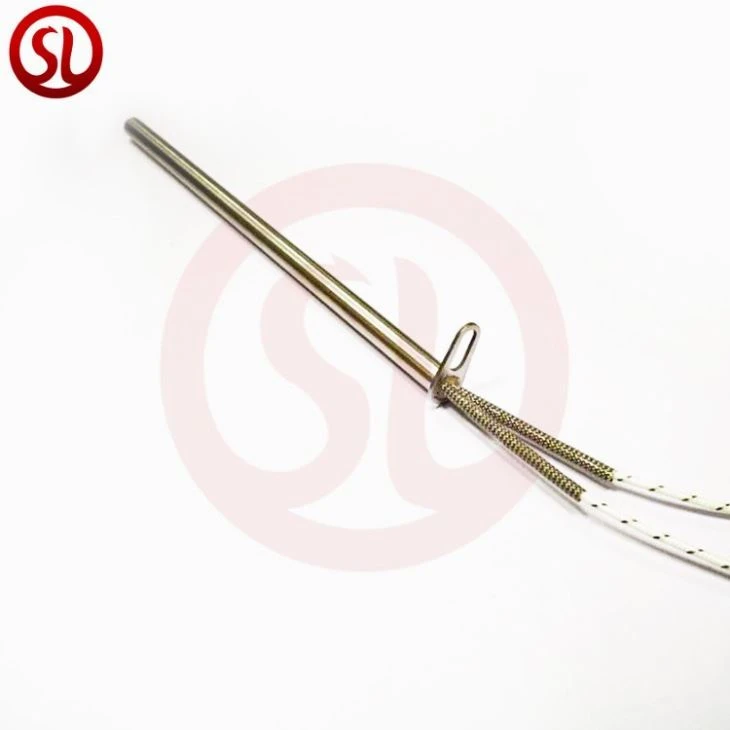

Application of 10*240mm cartridge heater for mask machine
How do you to order the cartridge heater for mask machine?
1.What wattage and voltage will be used?
2.What is the diameter and heated length required? 3.How long do the heater leads need to be? 4.What is maximum temperature and how long required to reach your temperature?
