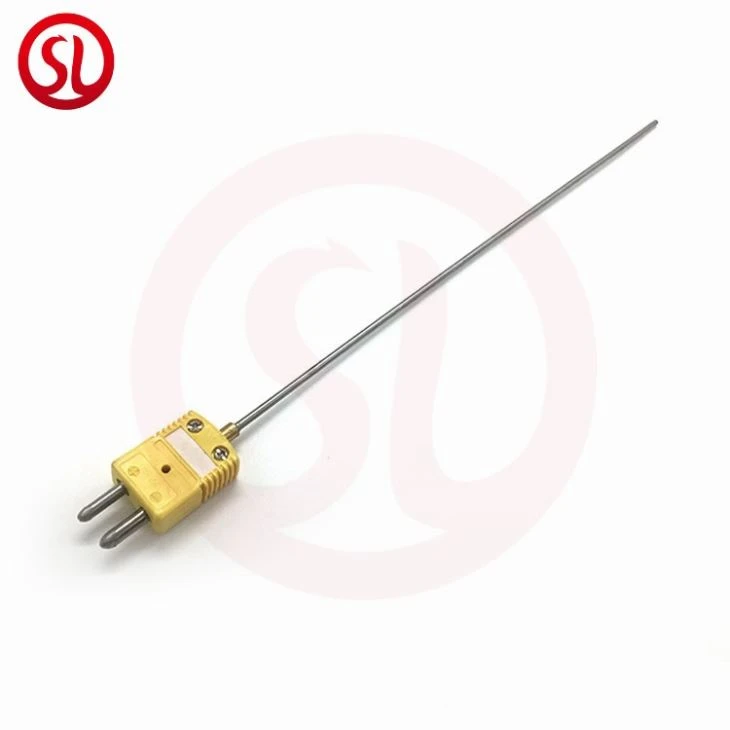

Mineral Insulated Thermocouple with Miniature Plug
High integrity construction suited to arduous operating conditions at temperatures (dependent on sheath material and thermocouple type)
Custom built to your specification and terminated in a choice of miniature thermocouple plugs rated to 220ºC, 350ºC or 650ºC
Alternatively, we have a large range of sensors available to buy online in various diameters and lengths
High accuracy and stability maintained throughout the operating life of the sensor
Fast response and high insulation resistance

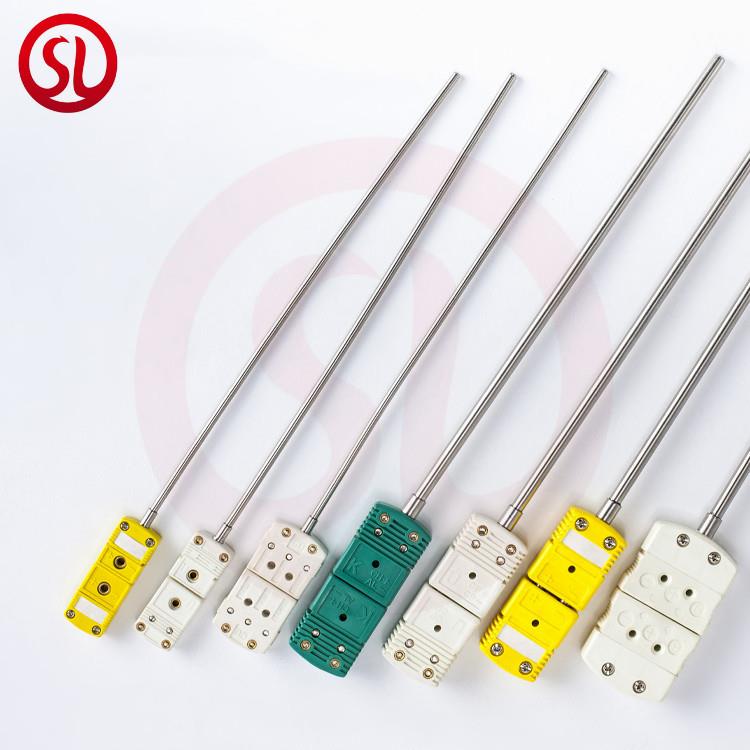

Available in thermocouple types K, T, J, N, E, R, S & B with sheath diameters from 0.25mm to 3.0mm and lengths from a few millimetres to 200 metres or more dependent on the sheath diameter selected
Version | |
Calibration | Type K |
Standard | ANSI |
MIC sheath material | SS316 |
MIC sheath OD. | 4.8MM |
MIC length | 0.3m-5m |
Accurancy | Class 1 |
Max. temperature | 925℃ |

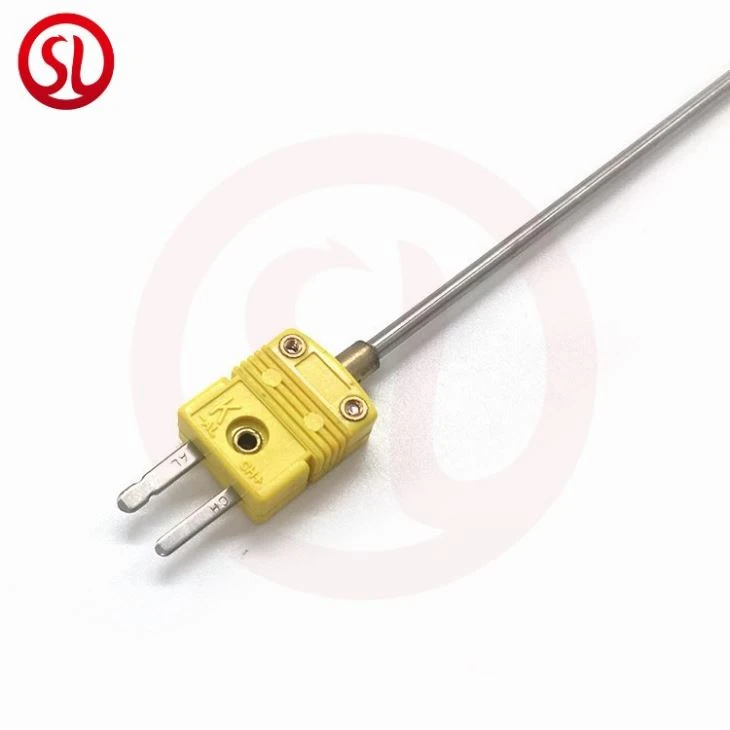

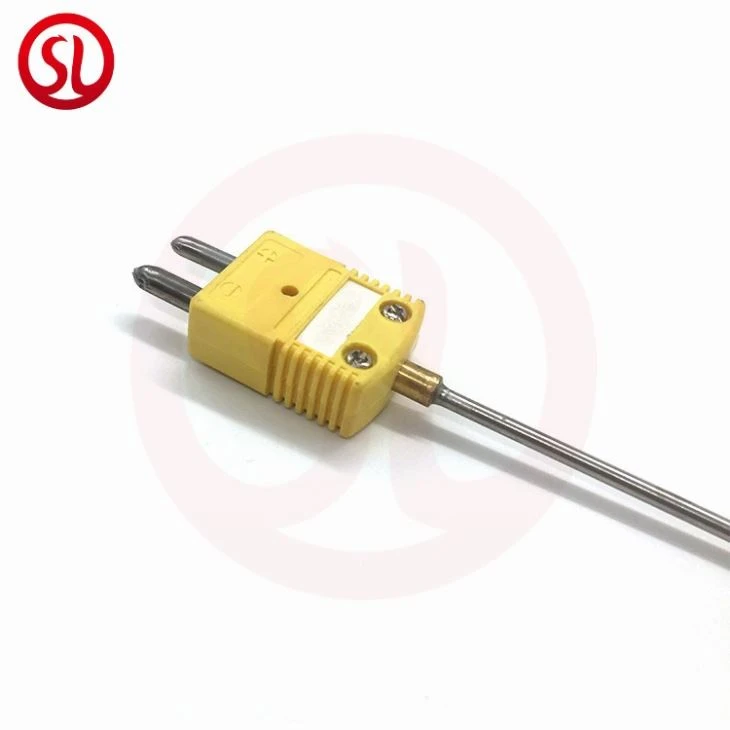

Miniature connector plug | Type K connector |
Miniature connector socket | Type K connector |
Plug and socket color | yellow |

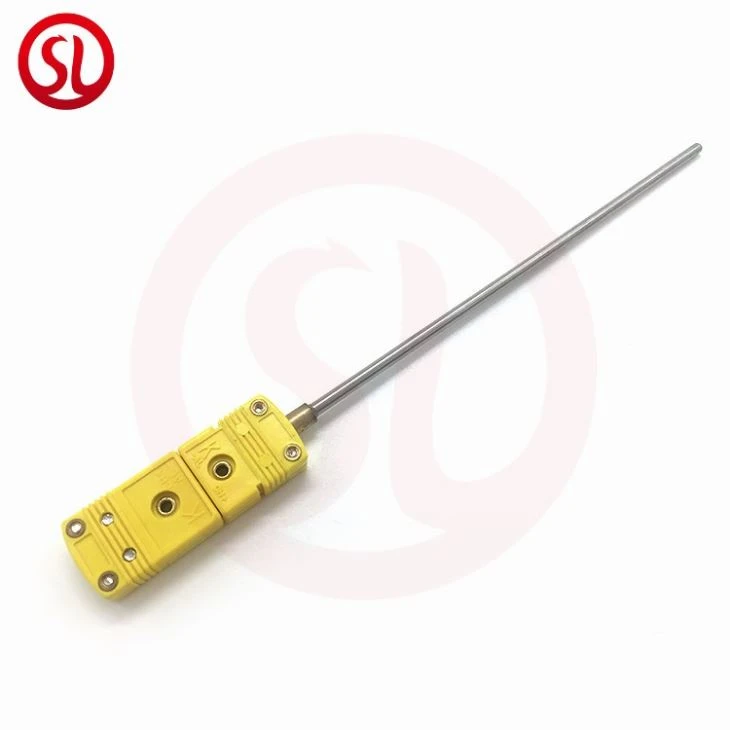

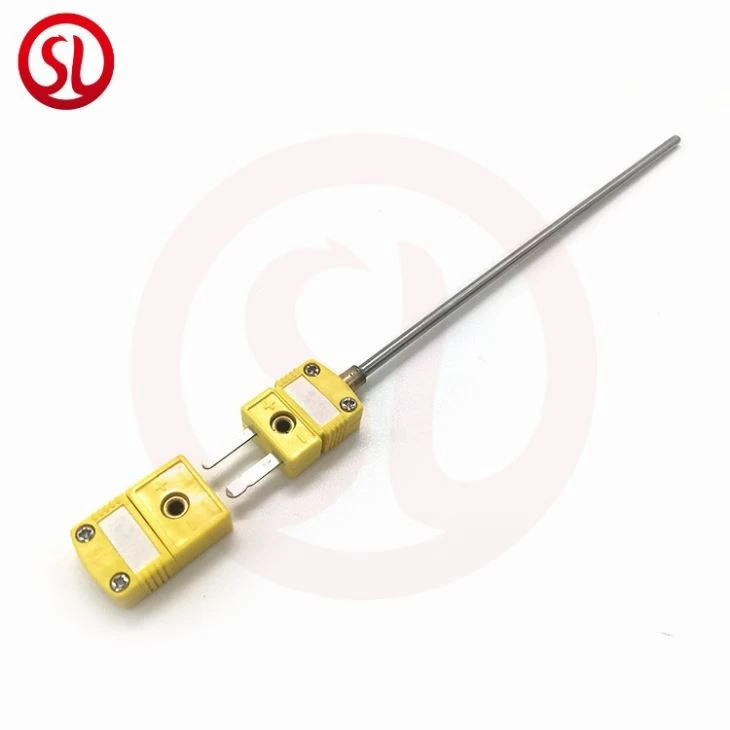

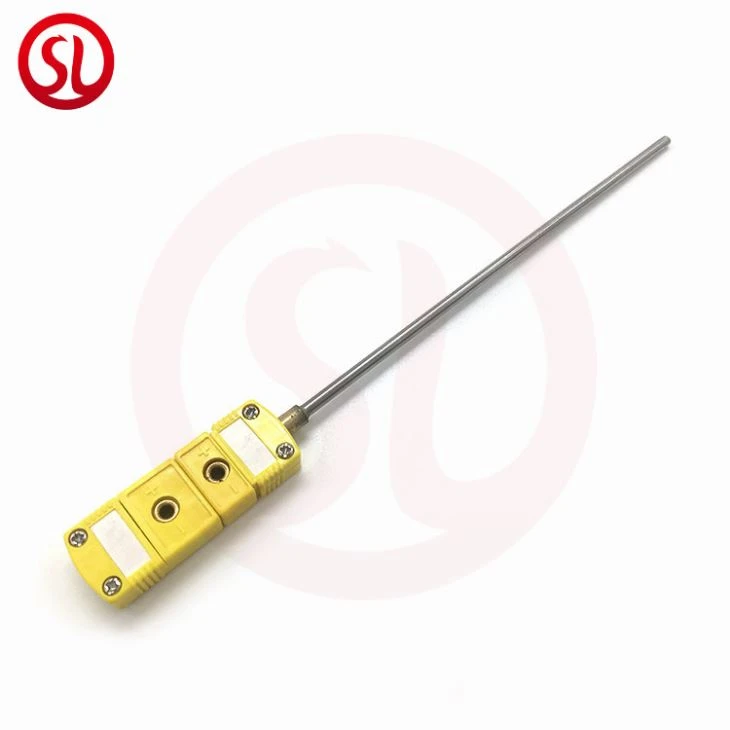

Type | MIC with miniature connector plug and socket |
Application Notes:
Suitable for quick replacement on plants
Can be used on equipment for fast assembly
Compatible with most hand held readouts
Special Options:
Socket instead of plug
Sensors bent to shape
Weld pads or weld on tips
High vibration schemes
Compression fitting
High temperature plug/socket available to 350 °C
Ceramic plug/socket available to 500 °C
Insulated exposed or grounded junction
Tagging
