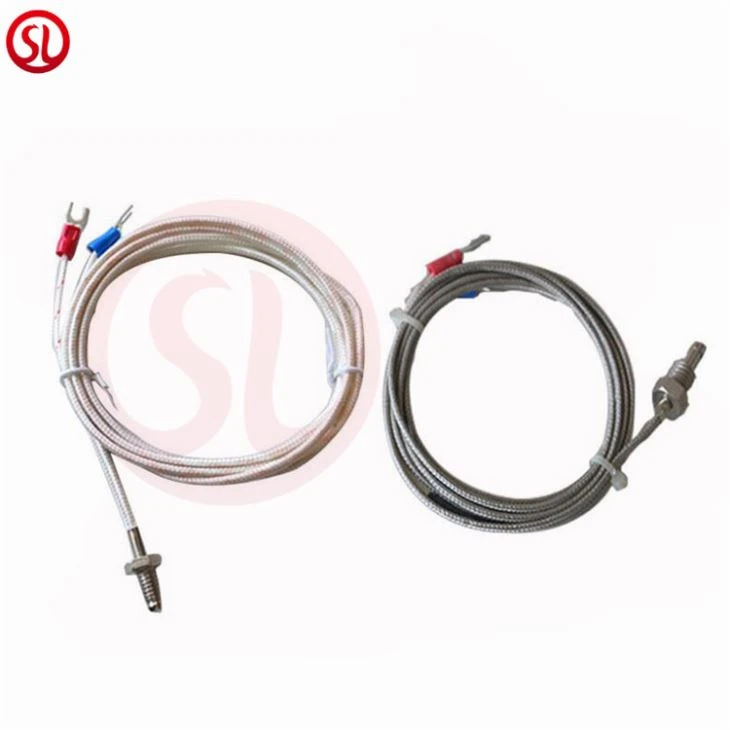

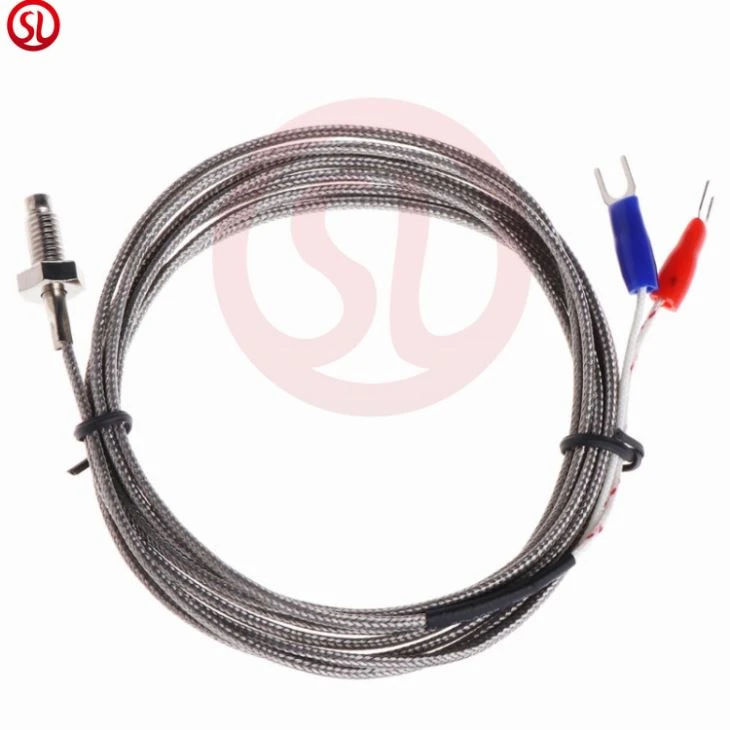

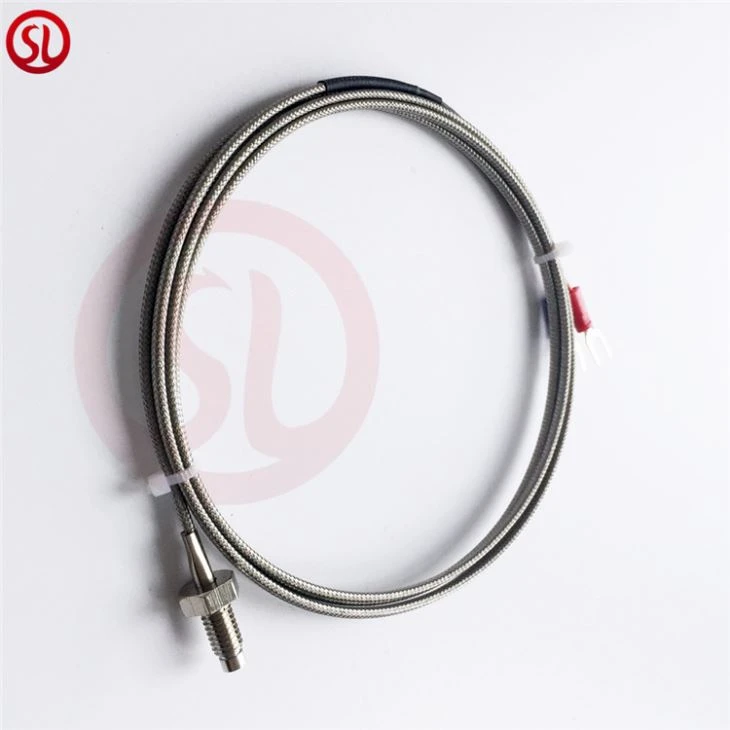

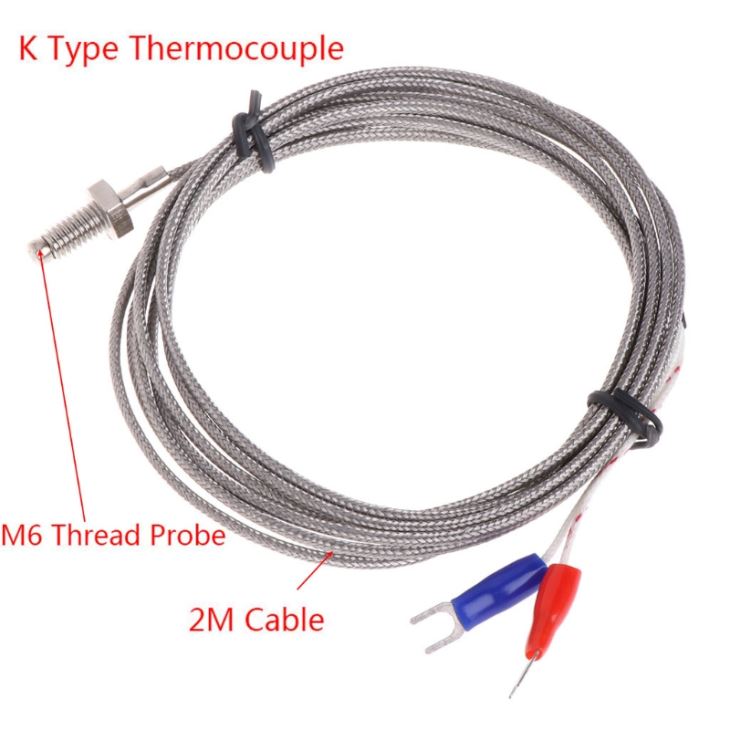

K J Type Screw Thermocouple from Shenglong for gas grill are used in many industrial, scientific, and OEM applications. They can be found in nearly all industrial markets: Power Generation, Oil/Gas, Pharmaceutical, BioTech, Cement, Paper & Pulp, etc. Thermocouples are also used in everyday appliances like stoves, furnaces, and toasters. M6.M8 thread can be selected, variety in cable length of thermocouple
Operating Temperature: 0 – 1300 °C
Probe Material:Stainless Steel / 304SS/316SS/Ceramic
Probe Diameter : customerized
Probe Length (L): customerized
Threads Size:1/8" NPT / customerized
Threads Lock:Adjustable Compression Lock (Adjustable Length)
Cable Length:2m / customerized
Cable External Shielding:Stainless Steel Braiding
Cable Internal Insulation: Teflon , glassfiber, pvc ect. customerized
Conductor material | Type | Graduation | long-term use temperature °C | short-term use temperature °C |
Pt-Rh30-Pt6 | WRR | B | 0-1600 | 0-1800 |
PtRh13-Pt | WRQ | R | 0-1300 | 0-1600 |
PtRh10-Pt | WRP | S | 0-1300 | 0-1600 |
NiCrSi-NiSi | WRM | N | 0-1000 | 0-1100 |
NiCr-NiSi | WRN | K | 0-900 | 0-1000 |
NiCr-Cu | WRE | E | 0-600 | 0-700 |
Fe-Cu | WRF | J | 0-500 | 0-600 |
Cu-Cu | WRC | T | 0-350 | 0-400 |

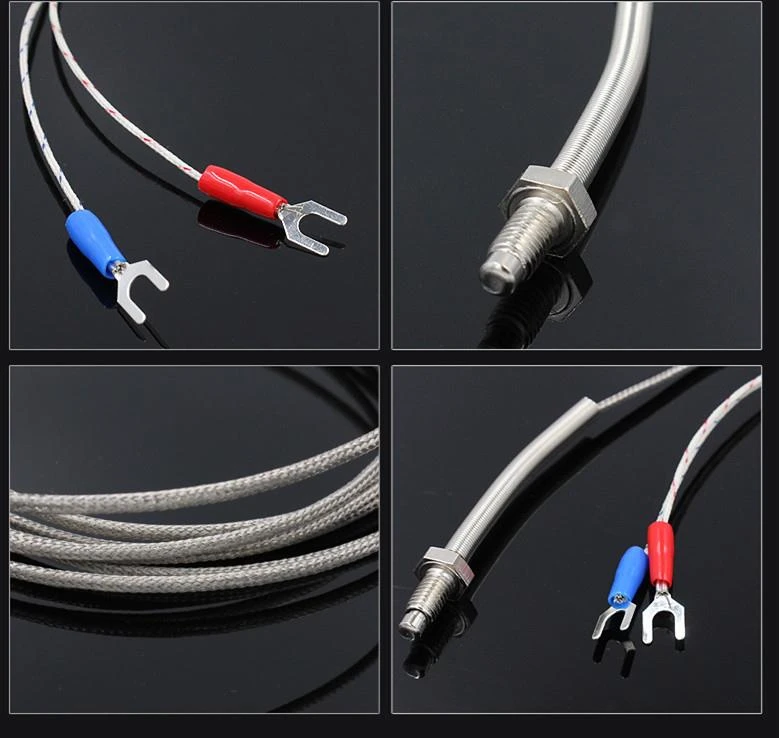

Thermocouple detail display:
We produce all kind of thermocouple with high quality & any shape ,like:k type thermocouple, J type thermocouple, T type thermocouple etc, can customize as customer requirement, ,please feel free to send your inquirys for more specifications.
