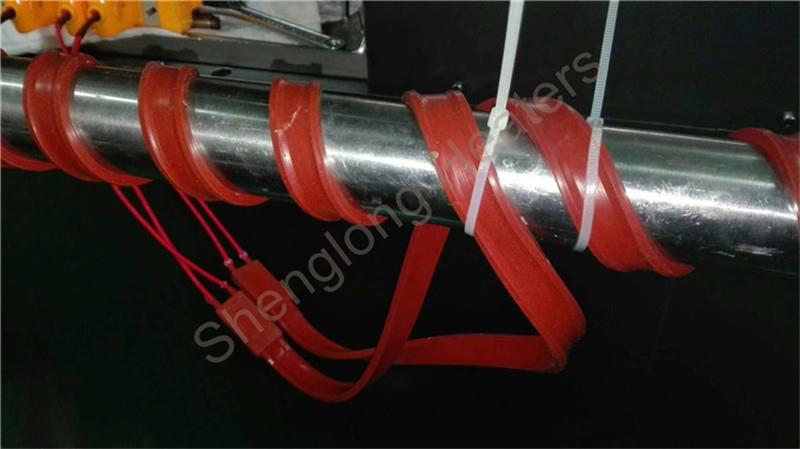

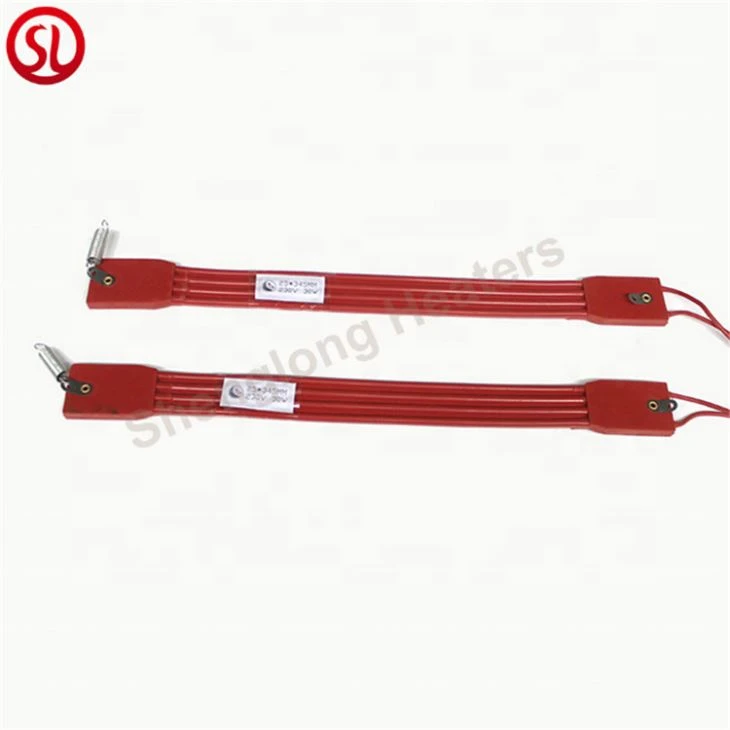

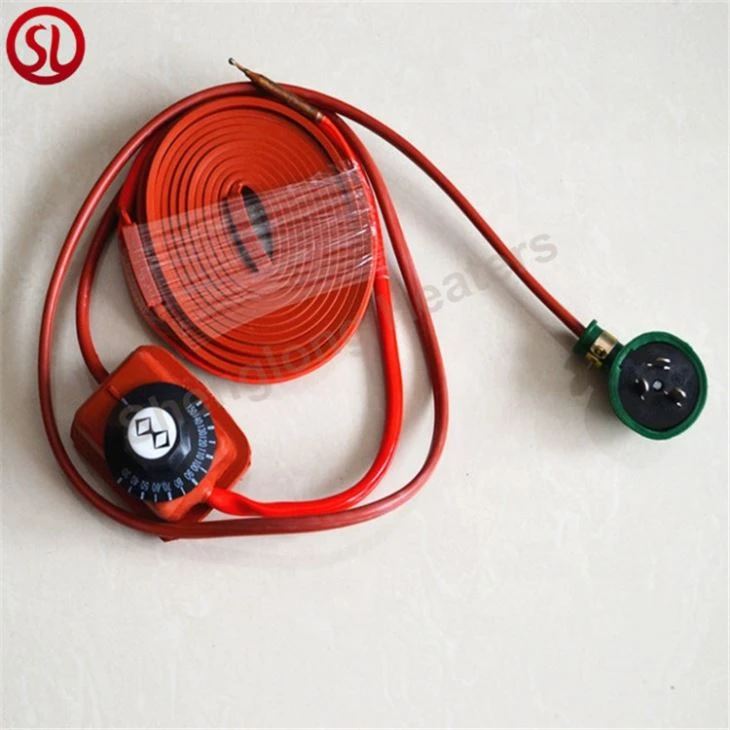

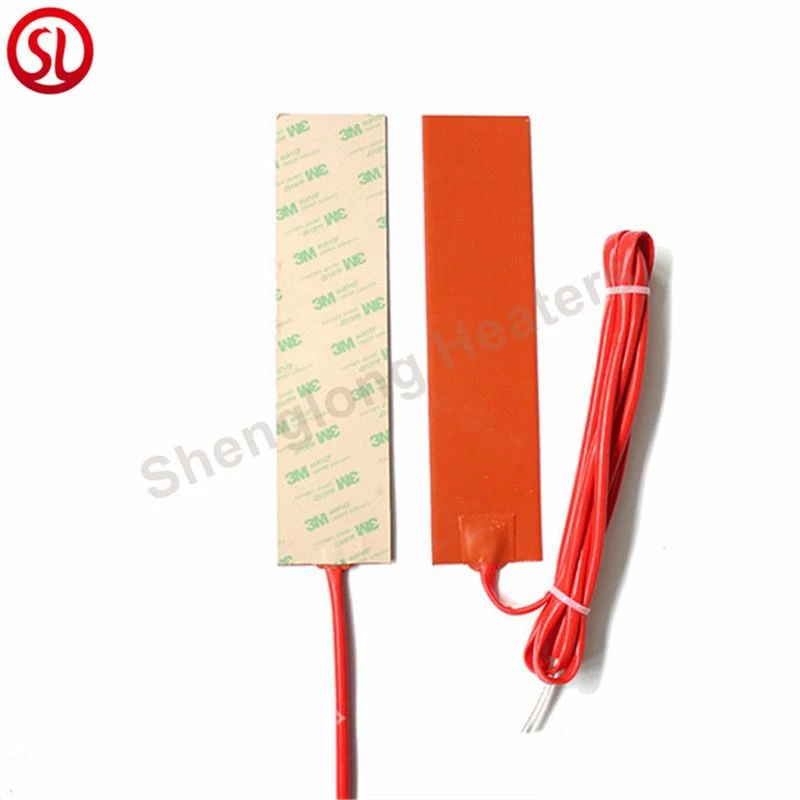

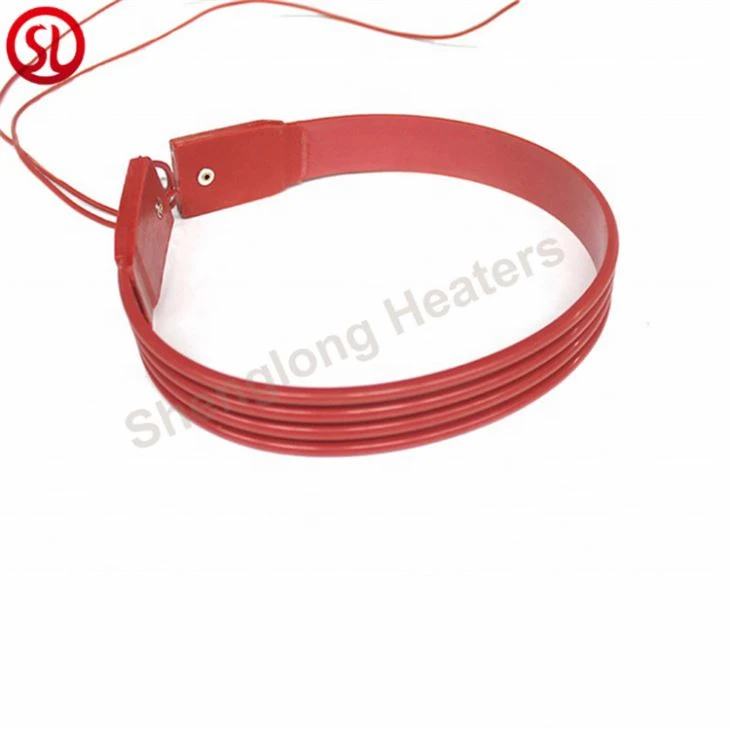

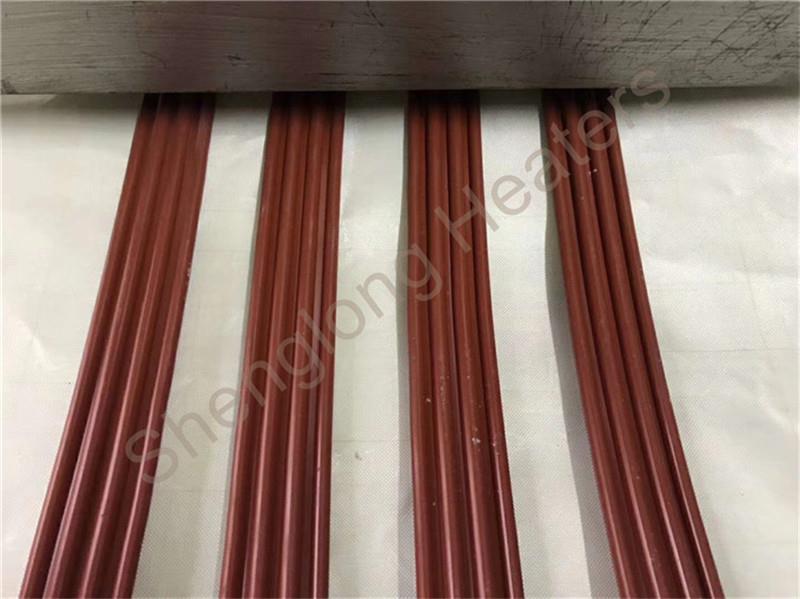

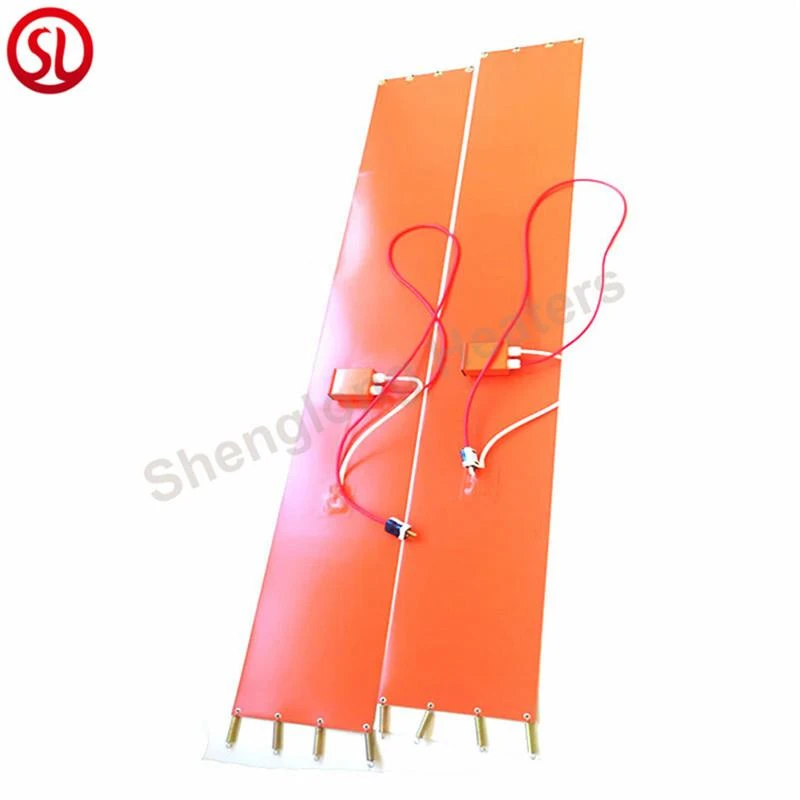

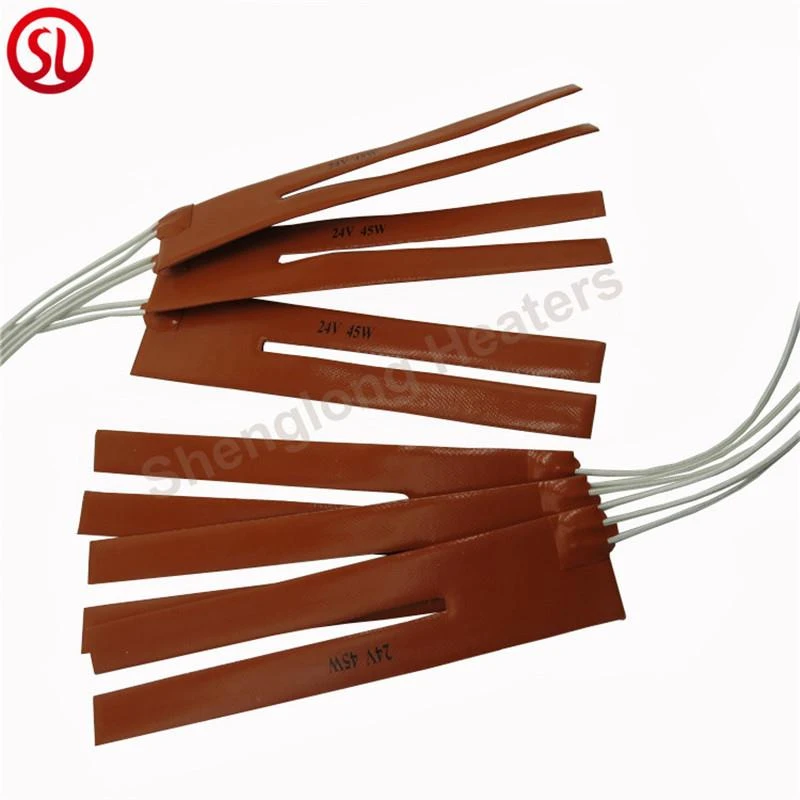

Flexible Silicone Rubber Strip
The Silicone Heating strip consists of high temperature resistance wire wound around a fiberglass core for added support and flexibility while still allowing for expansion and contraction during heat up and cool down. The element is laid out in a computer designed pattern to provide maximum heat transfer and temperature uniformity. After the element is laid out, it is vulcanized between two sheets of silicone rubber until they become one. The silicone rubber sheets also have a layer of fiberglass for added strength and tear resistance. The same vulcanization process is used to attach the power leads and cord sets to the heater windings.
Specification of Flexible Silicone Rubber Strip:
Temperature Rating:Maximum operating temperature 220-250 °C
Size/Shape Limitations :Maximum width 120CM, no maximum length
Thickness :Standard thickness 1.5mm or customized as customer requested
Voltage :Any AC or DC
Wattage :Customer specified (Normal maximum of 5 Watts per square inch)

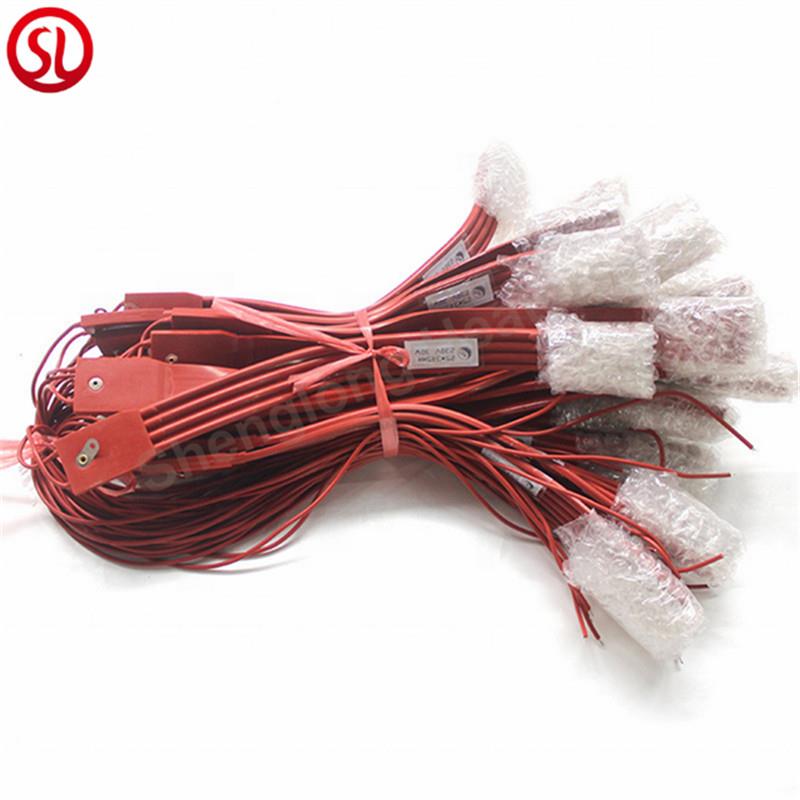

Power Lead wires :Silicone Rubber or Teflon insulated stranded wire
Attachment :Hooks, Lacing Eyelets.

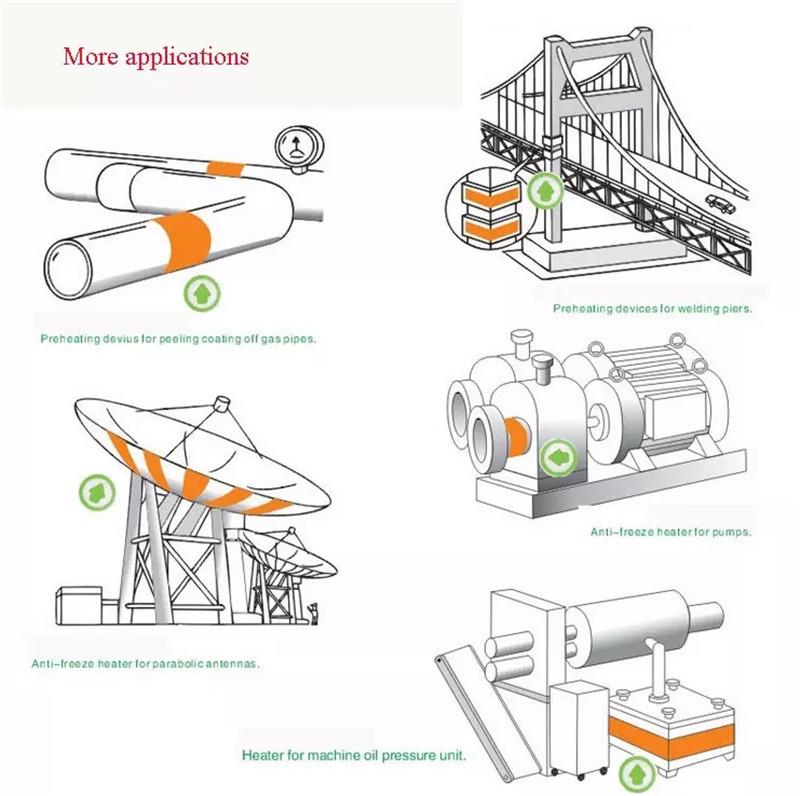

Application of Silicone Rubber Heaters:
1 Freezing and compression prevention for various instruments and devices.
2 Medical equipment such as blood analyzer, test tube heater.
3 Computer auxiliary equipment, such as laser printer.
4 Vulcanized surface of plastic film.
