2mm Miniature Cartridge Heater

2mm Miniature Cartridge Heater
Details:
2mm diameter miniature cartridge heater, made of high quality material, can meet your specail application, contact us :sales@heatersmfg.com to know more about the detail.
Send Inquiry
Description
Send Inquiry

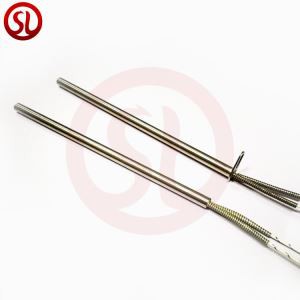

2mm miniature cartridge heater

we can make the miniature cartridge heater with 2mm diameter, all of made of high quality meterial, high performance,high surface loading, it's good solution for industrial application.

miniature cartridge heater Specification:

NameSmall Diameter Stainless Steel Industrial Cartridge Heater Electric Heating Element
Diameter(mm)2-40mm (Non-standard can be customized)
Length10mm - 6000mm
Max Wattage40w/cm2
ApplicationMold Tools,Packaging Machinery,Plastic Process Machinery, Food Process Machinery,Printing...etc
Max temperature927 ºC
Insulation resistance (500 [V-DC] unheated)≥50MΩ
The maximum leakage current (253 [V-AC] unheated)≤0.5mA
High voltage stability (temperature) Rated voltage≤24V -500V-DC> 24V 1500V-AC
Wattage Tolerance+5% - 10% (closer tolerances are available upon special request)
Input voltage12V-440V (non-standard can be customized)
Terminal unheated length<3mm-20mm
Non-terminal unheated length<3mm-20mm

 Technical parameters:

 Diameter of electric heating pipe: 2 ~ 40mm

 electric tube: heat-resistant seamless stainless steel pipe, the use of temperature up to 700 ºC;

 Input power and power: 6V ~ 440V (on demand)

Shenglong cartridge heater04

2mm miniature cartridge heater applications:

* Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

* Telecommunications: Deicing, Enclosure Heater

* Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,

* Food Service: Steamers, Dish Washers,

* Industrial: Packaging Equipment, Hole Punches, Hot Stamp,3D printers.



Shenglong Cartridge Heater Lead Types



FAQ

Q: Can I customize the length for 2mm miniature cartridge heater?

A: yes, can customize according to customer requirement.

 Q:Do you accept OEM?

A:Yes, we make OEM cartridge heater according to your requirements.

 Q:How long is the delivery time?

A:The delivery time is determined by quantity and specific conditions, and the detail will be confirmed when you order.

 Q:Do you provide sample?

A:Yes, we could offer the sample for free base on the cost of sample,but you need pay the freight.
