GN800 Nickel Mica high temperature Wire
Nickel Mica high temperature Wire with long service life,high temperature resistance,resistance to aging and soft flexural performance,can be used for winding.
Technical data of high temperature wire:
1.Product Standard:GB1266.6-90Q1321281KLA02-2009
2.Flame does not burn refractory wire YW500 (350℃~1000℃)
3.Rated Temperature:500℃~1000℃
4.Rated Voltage:750V
5.Conductor use bare copper,nickel plated copper or pure nickel wire of single or stranded wire with 0.5~25mm2.
6.The insulation is made of natural mica tape wrapped around and glass fiber braided,
imported high temperature mica glue vacuum high temperature sintering composition.
7.Colors are red,blue,white,yellow,green,brown,black(general color is milky yellow).

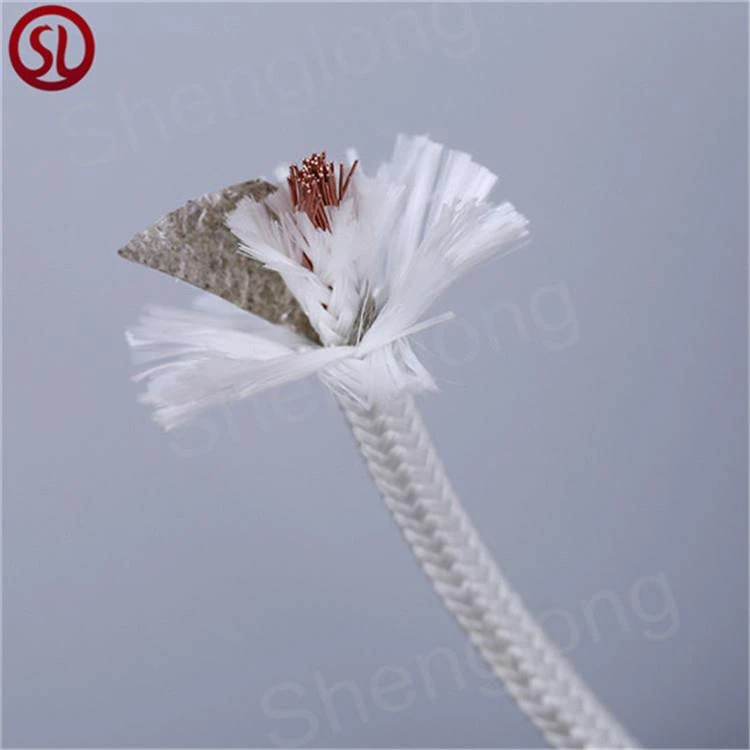

Product Schematic Diagram:
High Temperature Wire Parameter:
Nominal Section mm² | Conductor Structure No./mm | Insulation Thickness mm | O.D Control mm | Max conductor resistance 20℃Ω/km |
0.5 | 7/0.30 | 0.5 | 2.3±0.3 | 40.8 |
0.75 | 11/0.30 | 0.5 | 2.5±0.3 | 24.3 |
1 | 14/0.30 | 0.5 | 2.6±0.3 | 20 |
1.5 | 21/0.30 | 0.5 | 2.9±0.3 | 12.6 |
2 | 28/0.30 | 0.6 | 3.3±0.5 | 9.84 |
2.5 | 35/0.30 | 0.6 | 3.6±0.5 | 7.37 |
4 | 56/0.30 | 0.8 | 4.7±0.5 | 4.83 |
6 | 84/0.30 | 0.8 | 5.5±0.5 | 3.26 |
10 | 84/0.40 | 0.8 | 6.6±0.5 | 1.8 |
16 | 228/0.30 | 0.8 | 7.8±0.5 | 1.31 |
126/0.40 | 0.8 | 7.8±0.5 | 1.31 | |
25 | 361/0.30 | 0.8 | 9.5±0.5 | 0.758 |
196/0.40 | 0.8 | 9.5±0.5 | 0.758 |

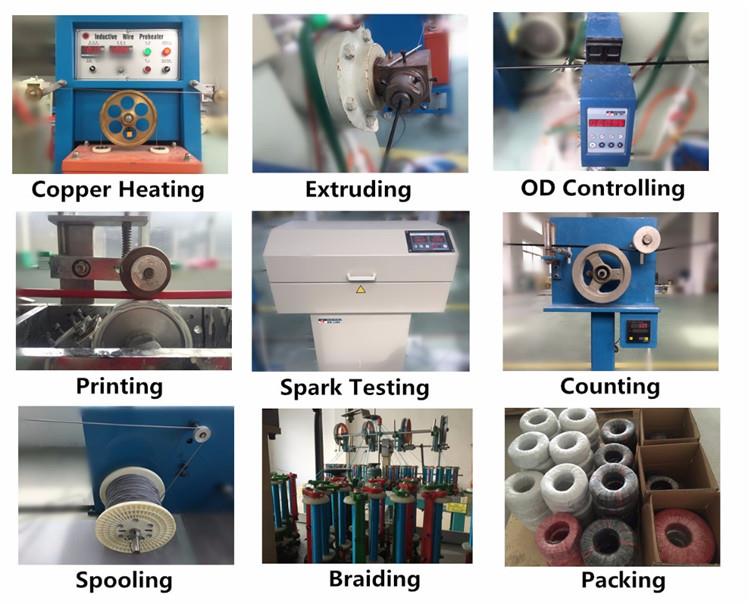

Production of High temperature wire:
Application of high temperature wire:
Contact US:
Shenglong Heating Electric Technology Co.,Ltd is a heating element manufacturers and has been focused on the production of industrial heating elements for over 20years, which is well-known as one of the leading manufacturers and suppliers of 1.8mm-35mm or big size cartridge heaters . In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. If you are interested inInjection Molding Hot Runner Coil Heater. 5pin Enail Coil Heater.Hot Runner Spiral Coil Heater.Hot Runner Coil Heater With Temperature Controller.XLR Plug Spring Coil Heater For Enail.please feel free to contact us.
