High Temperature Fiberglass Wire
High Temperature Fiberglass Wire is suitable for rated AC voltage 450/750V or below appliances, power-operated tools and various electric equipements.
Technical data of high temperature fiberglass wire:
1.Pleach:Fiberglass+Silicone
2.Insulation:Silicone Rubber
3.Conductor:Tinned Copper
4.Temperature Range: -60℃~+180℃
5.Rated votage:2KV/10KV
6.O.D.Tolerance:±0.1mm
7.Product standards:GB/T5013.3-2008
8.Colour:White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green

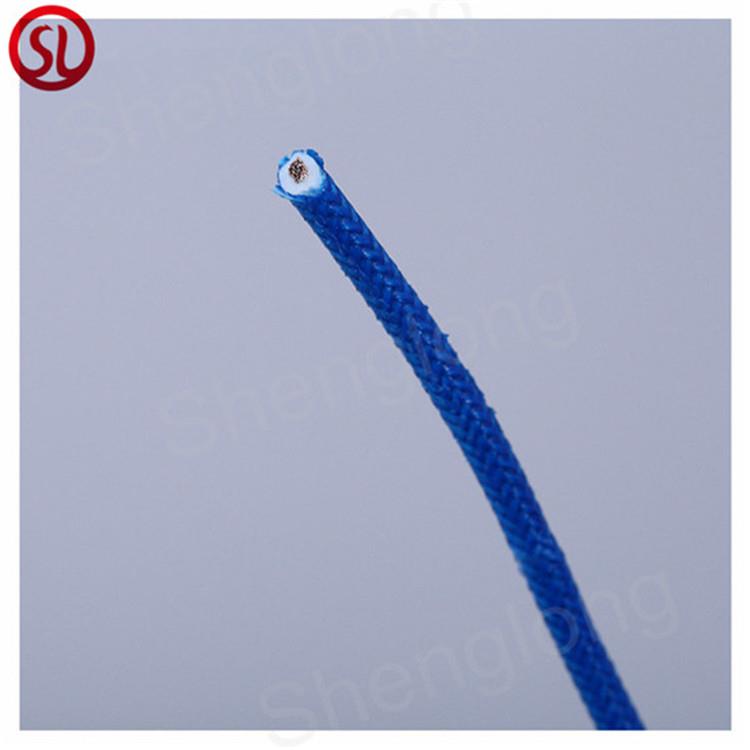

Product Schematic Diagram:
High Temperature Wire Parameter:
Conductor | Insulation | Electrical Properties | Packing | |||
SectionalArea(mm2) | Conductor Construction No.xΦmm | Diameter(mm) | Insulation thickness(mm) | Outer Diameter(mm) | Max.Conductor Resistance DC 20℃Ω/km | m/coil |
0.30 | 16x0.15 | 0.70 | 0.60 | 1.85 | 71.2 | 74/90 |
0.50 | 28x0.15 | 1.00 | 0.60 | 2.20 | 40.1 | 74/90 |
20x0.18 | 1.00 | 0.60 | 2.20 | 40.1 | 74/90 | |
0.75 | 42x0.15 | 1.20 | 0.70 | 2.60 | 26.7 | 74/90 |
24x0.20 | 1.20 | 0.70 | 2.60 | 26.7 | 74/90 | |
1.0 | 32x0.20 | 1.30 | 0.75 | 2.80 | 20.0 | 74/90 |
1.5 | 48x0.25 | 1.60 | 0.75 | 3.10 | 13.7 | 74/90 |
2.5 | 49x0.25 | 2.00 | 0.85 | 3.70 | 8.21 | 74/90 |
4.0 | 56x0.30 | 2.90 | 0.70 | 4.30 | 5.09 | 74/90 |
6.0 | 84x0.30 | 3.60 | 0.80 | 5.20 | 3.39 | 74/90 |
10.0 | 84x0.40 | 4.60 | 1.00 | 6.60 | 1.95 | 74/90 |
16.0 | 126x0.40 | 5.80 | 1.20 | 8.40 | 1.24 | 74/90 |
25.0 | 196x0.40 | 7.70 | 1.40 | 10.4 | 0.795 | 74/90 |

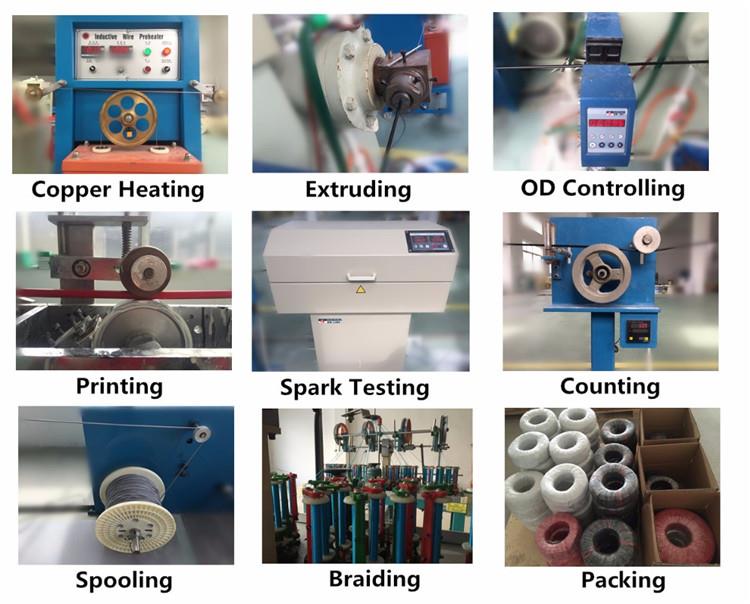

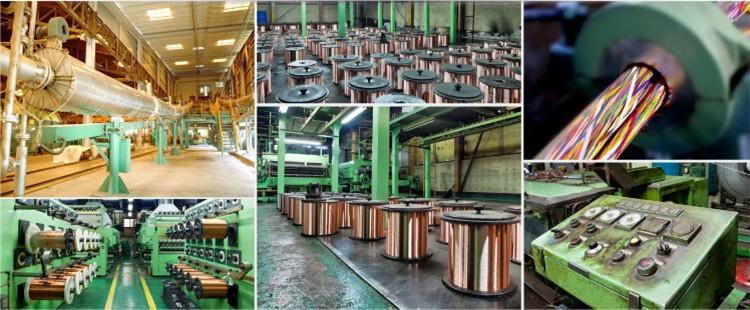

Production of High temperature wire:
Application of high temperature fibergrass wire:
Used for heating source for lighting,electric machinery,air conditioning,over,drying path,tauto ignition,and household appliances etc.
Contact US:
Shenglong Heating Electric Technology Co.,Ltd is a heating element manufacturers and has been focused on the production of industrial heating elements for over 20years, which is well-known as one of the leading manufacturers and suppliers of 1.8mm-35mm or big size cartridge heaters . In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. If you are interested inInjection Molding Hot Runner Coil Heater. 5pin Enail Coil Heater.Hot Runner Spiral Coil Heater.Hot Runner Coil Heater With Temperature Controller.XLR Plug Spring Coil Heater For Enail.please feel free to contact us.
