Miniature Thermocouple Connector Specifications :

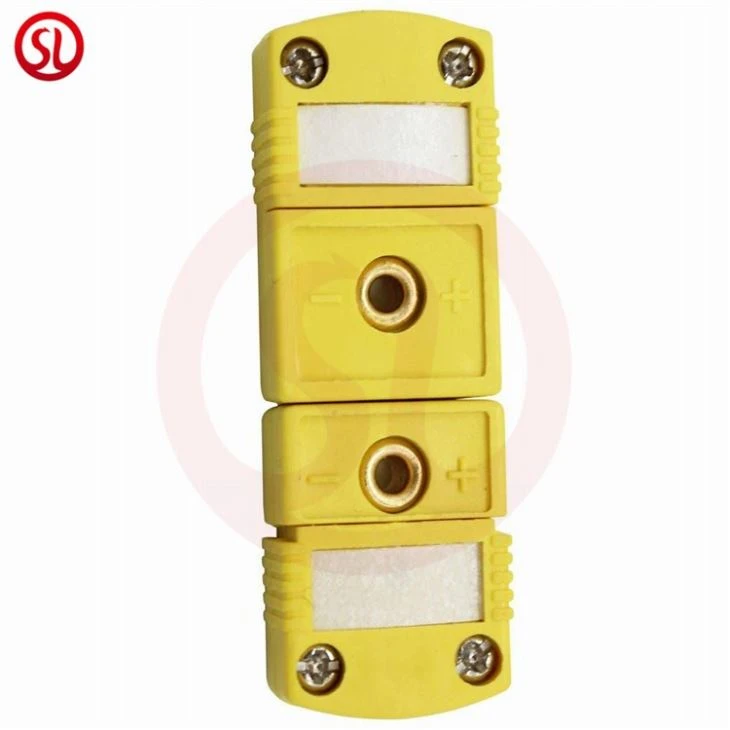

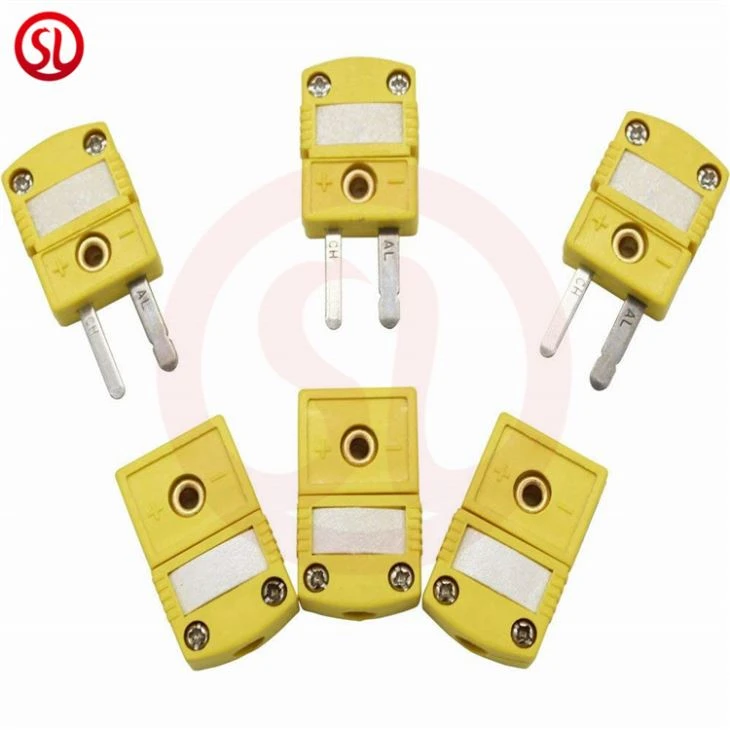

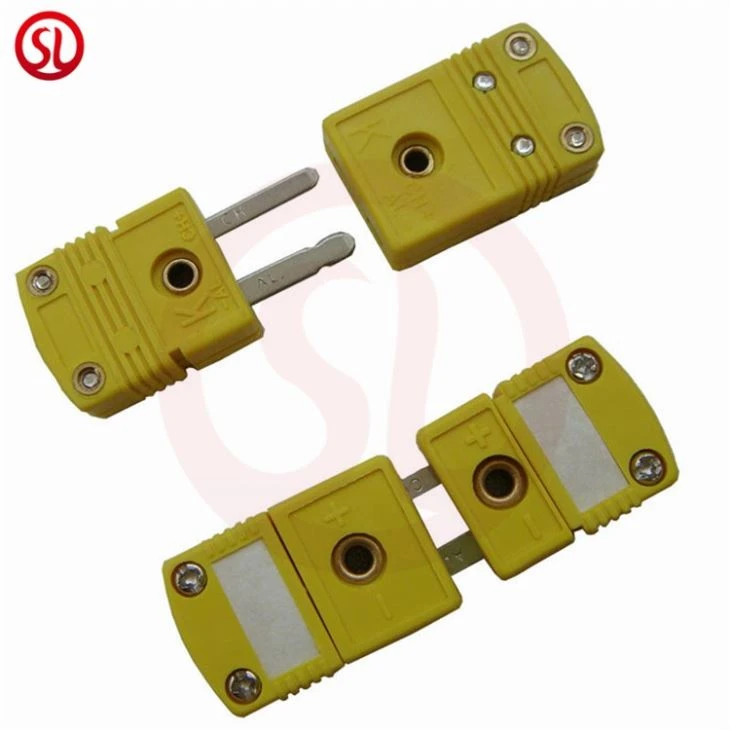

1. K type Mini Thermocouple Connector

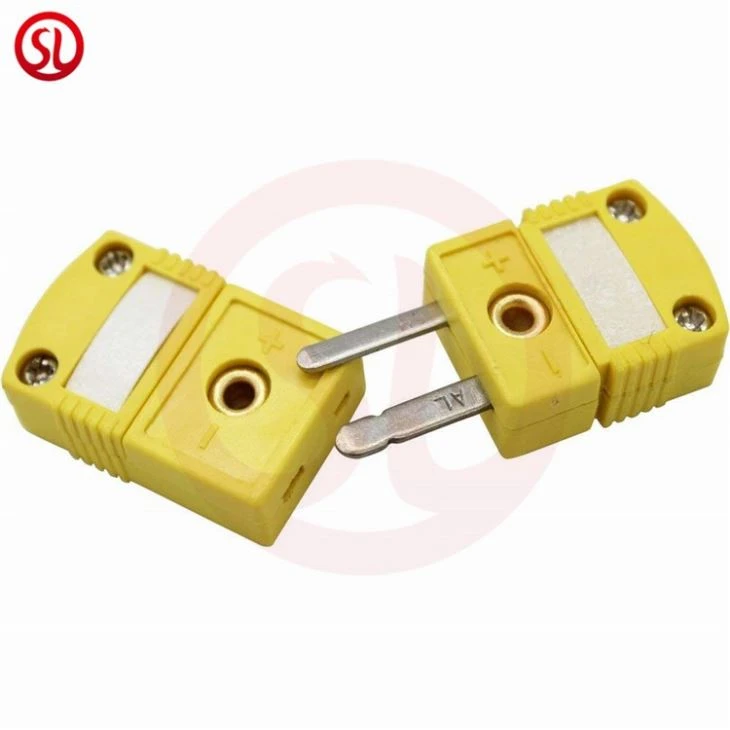

2.Male And Female
3.Color: Yellow
4.Temperature:220C
5.Flat Pin
Mini Thermocouple Connector Feature:
1.It apply high strength alloy shell and is produced according to imported standard.High temperature resistance,high voltage resistance,acid,alkali,smash resistance.
2. Silastic shell can resist high voltage and heat,soft. 25A fluoroelastomer plug, High
temperature resistance,high voltage resistance,acid,alkali,smash resistance(flat plug with three holes)
3. Technique:High temperature plug is combined by copper core interface and ceramic,and made out at protection shell of outer aluminum or protection shell of silastic.
4. Purpose:used in high temperature working environment.
5. Characteristic:can be used as lead in the condition of below 300 °C
Type K
Order code | Description | Calibration | Material | Color code | |||
Positive | Negative | ANSI | IEC | JIS | |||
K | Male+Female | Type K | NiCr | NiAl | Yellow | Green | Blue |
K-M | Male | Type K | NiCr | NiAl | Yellow | Green | Blue |
K-F | Female | Type K | NiCr | NiAl | Yellow | Green | Blue |
Type J
Order code | Description | Calibration | Material | Color code | |||
Positive | Negative | ANSI | IEC | JIS | |||
J | Male+Female | Type J | Fe | CuNi | Black | Black | Yellow |
J-M | Male | Type J | Fe | CuNi | Black | Black | Yellow |
J-F | Female | Type J | Fe | CuNi | Black | Black | Yelow |
Type T
Order code | Description | Calibration | Material | Color code | |||
Positive | Negative | ANSI | IEC | JIS | |||
T | Male+Female | Type T | Cu | CuNi | Blue | Brown | Brown |
T-M | Male | Type T | Cu | CuNi | Blue | Brown | Brown |
T-F | Female | Type T | Cu | CuNi | Blue | Brown | Brown |
Type N
Order code | Description | Calibration | Material | Color code | |||
Positive | Negative | ANSI | IEC | JIS | |||
N | Male+Female | Type N | NiCrSi | NiSiMg | Orange | Pink | - |
N-M | Male | Type N | NiCrSi | NiSiMg | Orange | Pink | - |
N-F | Female | Type N | NiCrSi | NiSiMg | Orange | Pink | - |
Type E
Order code | Description | Calibration | Material | Color code | |||
Positive | Negative | ANSI | IEC | JIS | |||
E | Male+Female | Type E | NiCr | CuNi | Violet | Violet | Violet |
E-M | Male | Type E | NiCr | CuNi | Violet | Violet | Violet |
E-F | Female | Type E | NiCr | CuNi | Violet | Violet | Violet |
