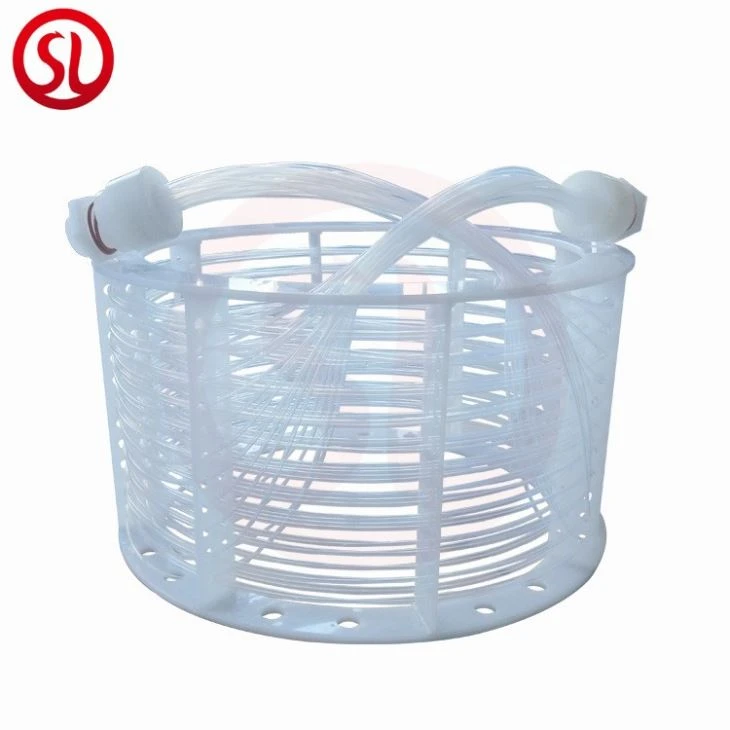

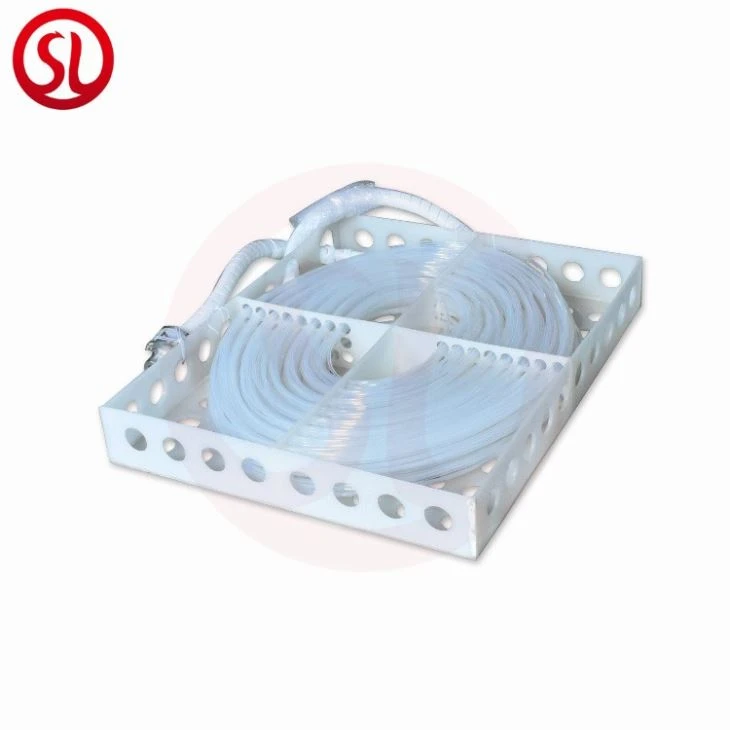

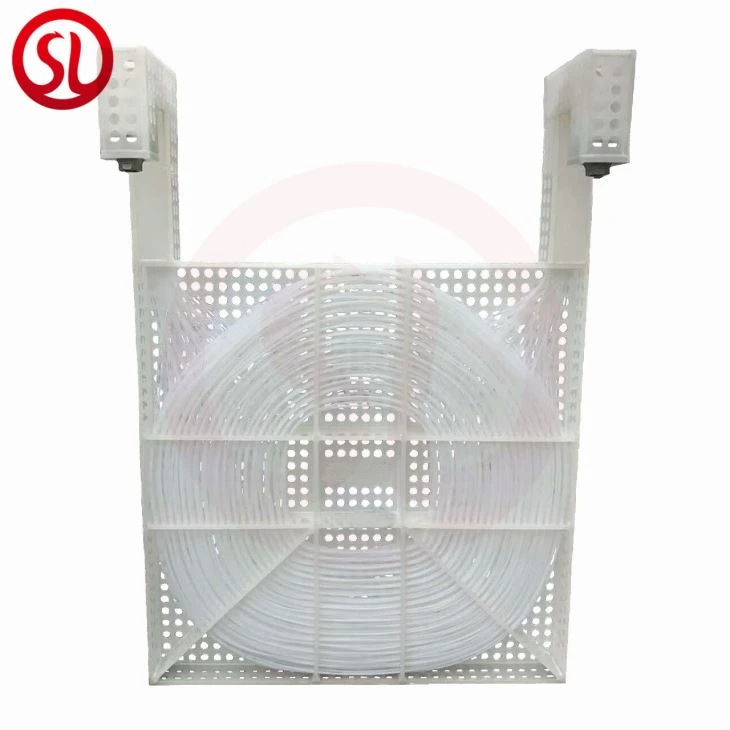

The Fluoroplastic cold heat exchanger products made of Shenglong includes:Coiled heat exchanger, L-type heat exchanger, U-type heat exchanger, O-type heat exchanger, bilateral interface type heat exchanger, Z-type F4 exchanger with frame, horizontal tube, single-sided interface type heat exchanger Converter, F4 switch
1. Teflon heat exchangers often use a bundled tube structure to achieve good heat dissipation. Generally, capillary tubes are used as heat exchange tubes. The outer diameter of the tube is 4.5-8MM. The number of tubes is designed according to the required heat exchange area. From 100 to nearly 100 tubes!
2. The frame material generally depends on the use environment, including PP, PVC and PVDF materials. There are three grades of Teflon PTFE, PFA and FEP for heat exchange pipes.
3. Different materials, frame materials PP, PVC are suitable for heat exchangers with hot water, ice water or steam as the medium, and heating temperature within 70 ℃, PVDF is suitable for heat exchangers with steam as the heating medium. Liquid whose heating medium does not exceed 150 ° C.
4. The heat exchanger adopts Teflon thin-walled capillary structure, which has the characteristics of good thermal conductivity, good pressure resistance, stable work, long anti-aging life and so on.
5. Since this product uses a capillary tube, in order to avoid clogging the pipeline, a pressure reduction and filter should be configured on the pipeline before the inlet to ensure the use effect!
