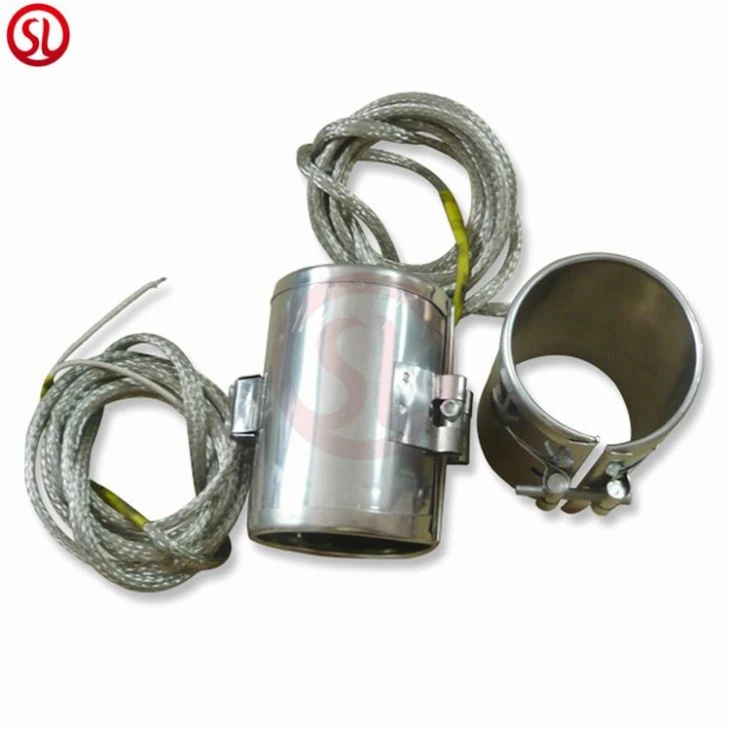

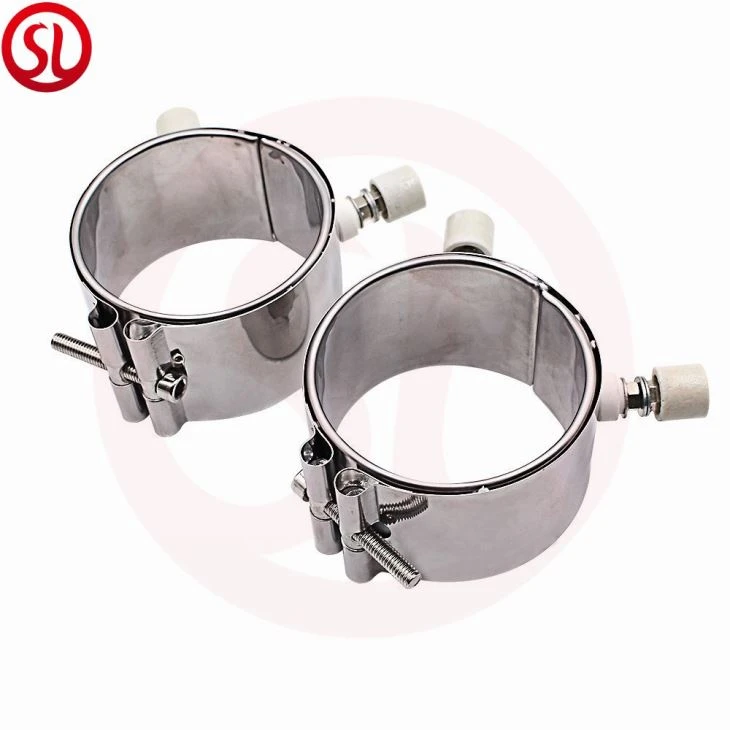

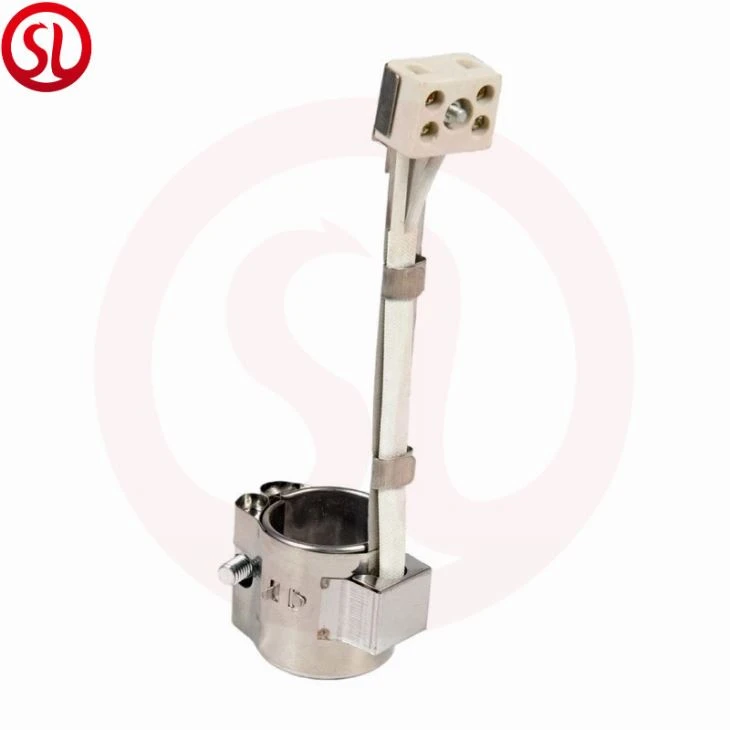

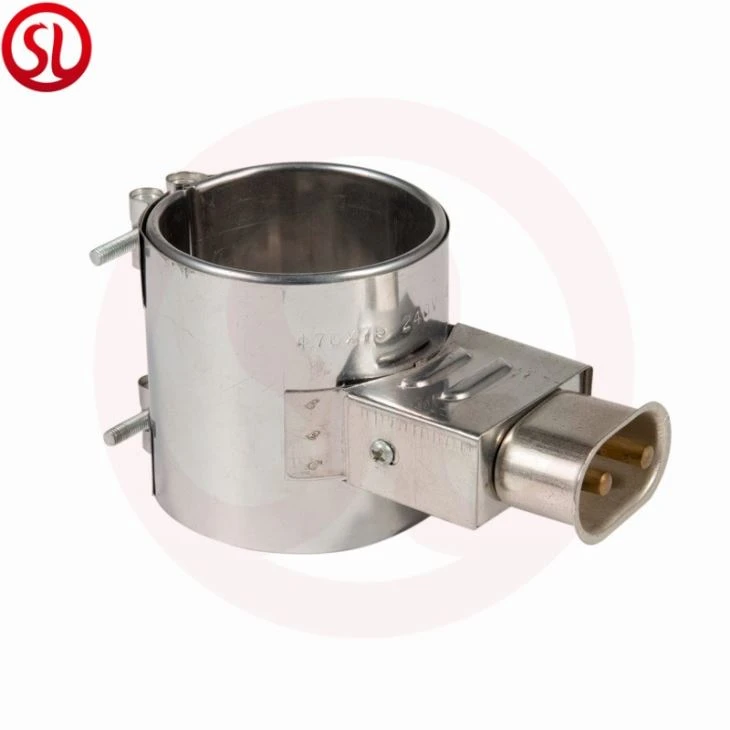

Stainless steel Mica Heating Element Mica Band Heater
Mica heaters are efficient and economical solutions to the heating requirements of many applications. Mica heaters can attain a maximum sheath temperature of 900°F, but with different electrical termination styles, clamping mechanisms, and ability to accommodate holes and cutouts, mica band heaters are successfully used in many applications, but are mostly sought for in the plastics industry.
Main Features of Mini Mica Band Heater:
1, Stainless Steel sheath resists rust and high temperatures, and provides firm mechanical support. 2, Mica insulation prevents heat loss, thereby lowering energy costs. 3, High temperature nickel-chromium element wire 4, Reduce power consumption and conserve heat 5, High degree of flexibility 6, Uniform heat distribution 7, Various termination styles Customized
Key Technical Indexes of Mini Mica Band Heater:
1.Use condition:environment temperature -20~+60 degree C,relative temperature<80% 2.Leakage current:<0.5MA 3.Insulation resistance:>=5M 4.Ground resistance:<0.1 5.Voltage resistance:no electric breakdown for 1 minute under 1500v 6.Temperature endurance: 200 degree C 7.Power deviation:+5%-10%
Application of mini mica band heater:
1.Injection Moulding / Extrusion Machines
2.Rubber Moulding /Plastic Process Machinery
3.Tooling & Die Heads
4.Packaging Machinery
5.Shoe Manufacturing Machinery
6.Test Equipment/Laboratory Equipment
7.Food Process Machinery
8.Drums containing solids or fluids
9.Vacuum Pumps and more...
The key questions which need to be answered before selecting a mica heater are: 1. What wattage and voltage will be used?
2. What is the size required?
3. What is the lead wire required?
