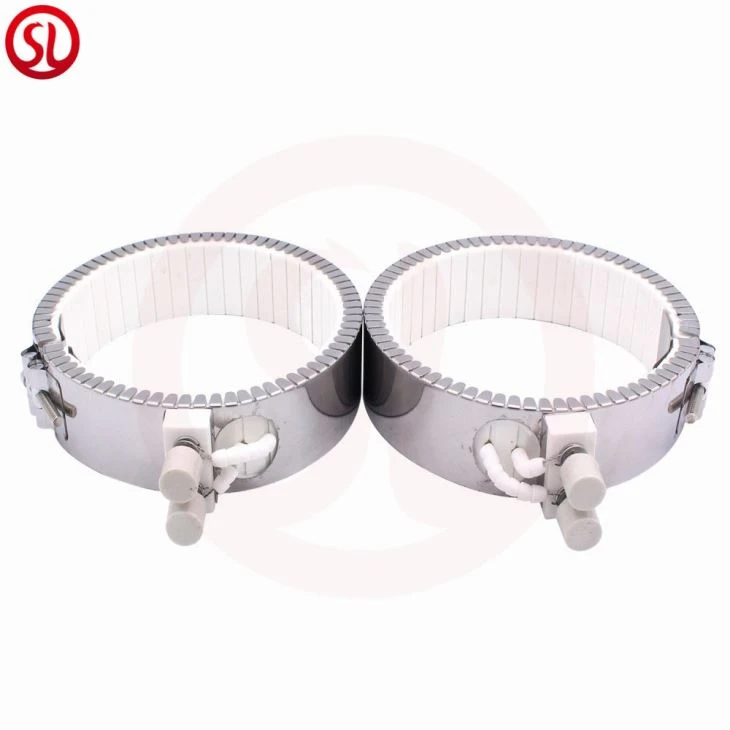

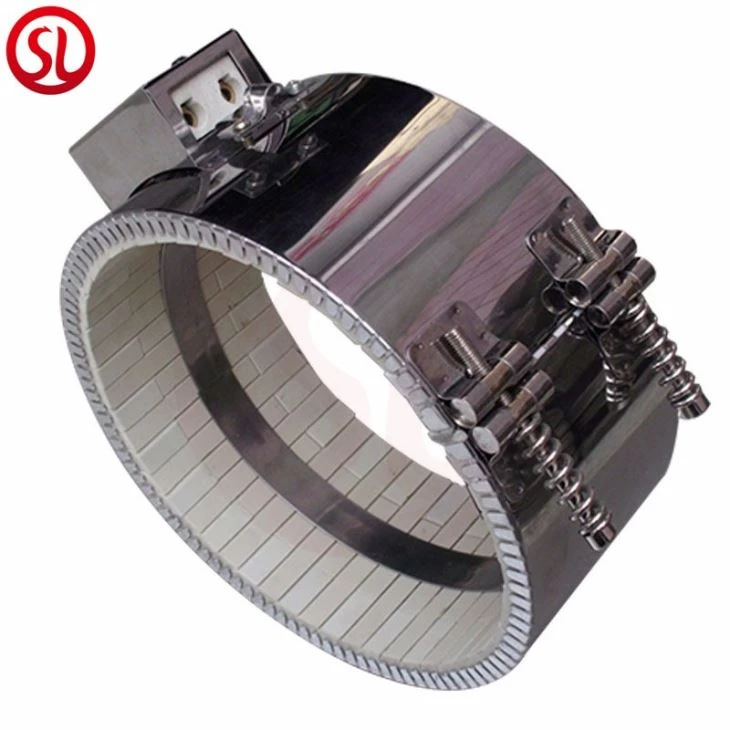

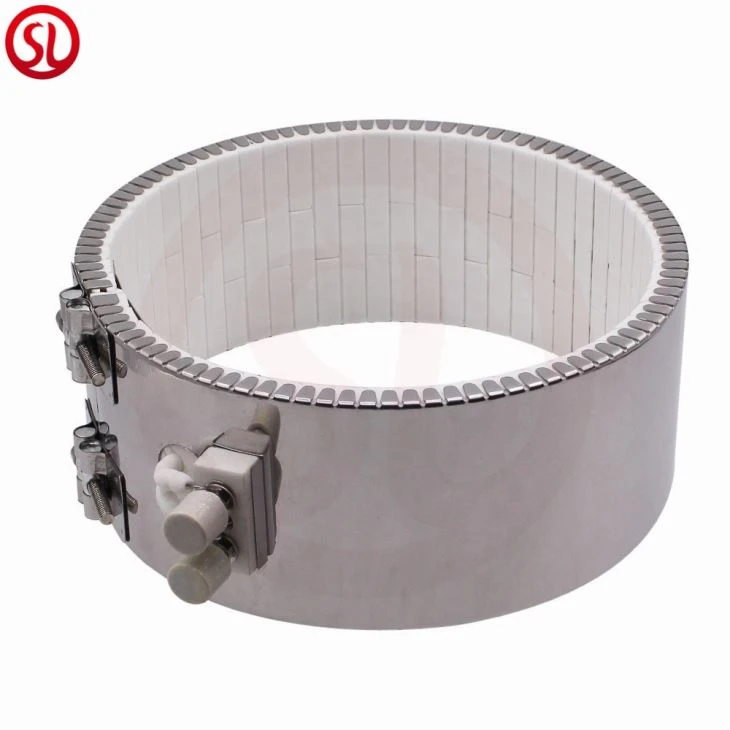

Ceramic Band Heater for Injection Molding Machine from Shenglong Heaters for superior performance and life expectancy. Primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500°C along with Energy Saving.
Specification of High temperature Industrial electric barrel ceramic band heater extruder
•Nickel-chrome wire in a outer wall composed of interlocking ceramic tiles • Inside medium-high temperature heaters up to 1200°F • Outside shell temperature: 350° – 450°F • Built-in ceramic fiber insulating mat • Stainless steel jacket • Minimum diameter: 2" • Minimum width: 1" • Thickness with ¼" insulation: 5/8" • Regular gap: 3/8 • Maximum watt density: 45 w/in2 • Broad range of terminal types and thicknesses of ceramic fiber insulation mats
type of ceramic band heater:
Details of ceramic band heaters:
ceramic band heater application:
l Plastic Injection Molding Machines
l Plastic Extrusion Machines
l Blown Film Dies
l Extrusion Dies and Cross Heads
l Blow Molding Machines
l Hot Runner Molds
l Oil Reclamation Equipment
l Food and Candy Extruders
l Drum Heating
l Holding Tanks
l Vending Machines
l Food Service Warming
l Autoclaves & Sterilizers
l Metallurgical Analyzers
l Fluidized Beds
l Pulp and Paper Processing Equipment
How to order ceramic band heater for Extruder?
When you inquire,pls supply some info as the following:
1.Size and shape
2.Voltage and power
3.Operation temperature requirement
4.Other design requirement
5.Order quantity
6.It‘s best you can supply drawing pics
