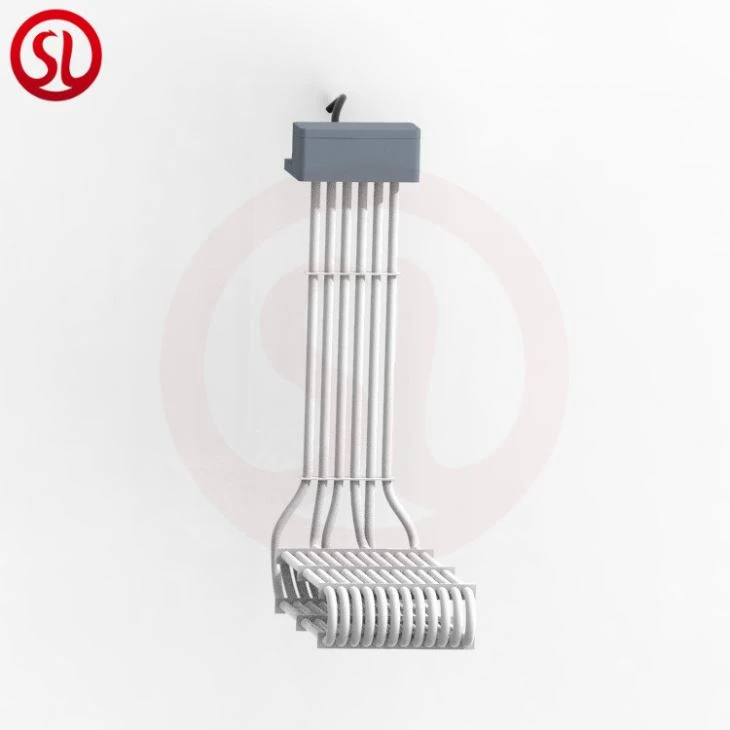

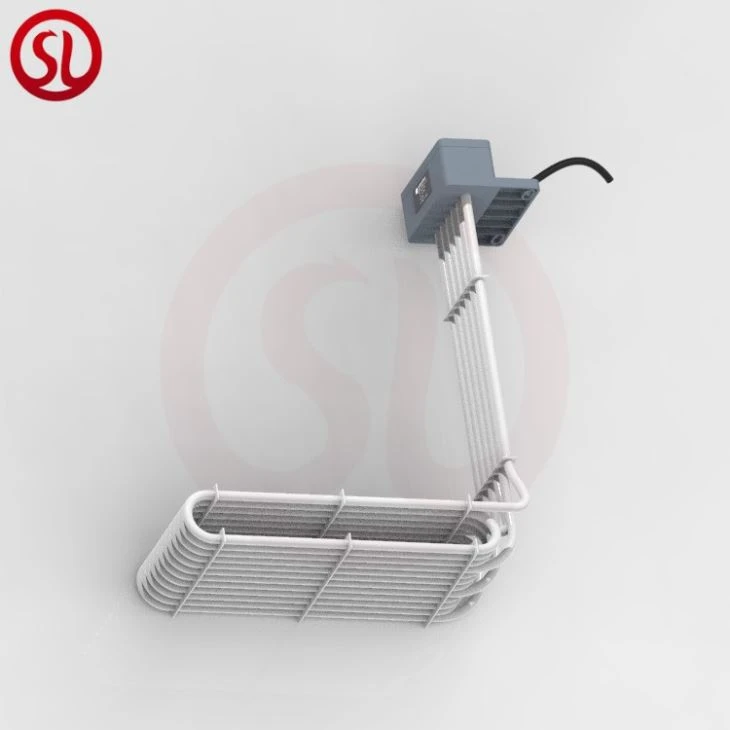

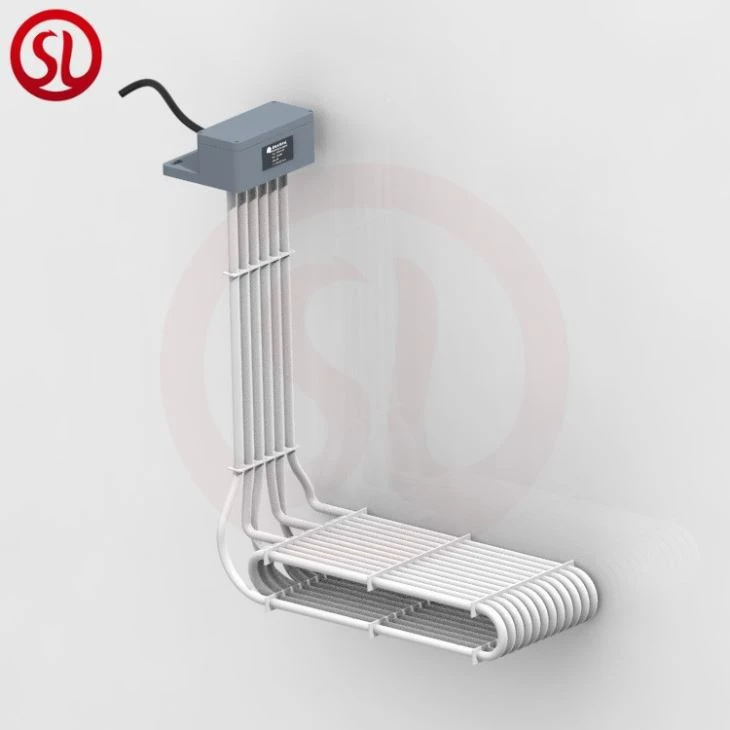

Teflon heater is the most versatile solution for a great variety of heating applications, in industry as well as in other fields. They can be shaped into any pattern, can be clamped or wrapped around the bodies that shall be heated. A large range of tubular heaters are available from stock. Standard diameters are 5.3, 6.6, 8,10,11,12 mm.
Teflon Heater Features & Benefits:
1.Available in a broad variety of sheaths, diameters, and ratings;
2.Supplied with electrically insulated sheath;
3.Provide superior internal electrical insulation and heat conductivity;
4.Easy to install;
5.Configurable to virtually any shape;
6.Compact size;
7.Precise and easy control of heat output;
8.Durable;
9.Easy to maintain;
10.Easy to replace thus eliminating long shut-down periods;
Teflon Heater Technical Specification:
1.Wattage Tolerance: +5%, -10%
2.Resistance tolerance: +10%, -5%
3.Voltages available: 380V,240V, 220V,110V,36V,24V or 12V
4.Operating temp: from 370ºC to 760ºC
5.Length tolerance: ± 1.5mm;
6.Delivery time: 7-14 working days.However, many sizes are kept in stock. Please contact the factory for assistance.
7.Insulation resistance (cold): ≥ 1000 MΩ;
8.Maximum leakage current (cold): ≤ 0.5 mA;
Heat intensity | Not exceeding 30w/cm2 (advisable) |
Power | Depends on the dimension |
Exhaust extreme (when cold) | <=0.1mA to 242 v. |
Insulation (when cold) | 5 Min Ohms 500 Watts minimum |
Dielectric strength | 1500v. 1/sec |
Working temperature | 750 Deg C max. |
Length tolerance | +/-1.5% |
Diameter tolerance | -0.02 to -0.06 mm |
Cut off connection tolerance | +/-15 mm |
Power tolerance (w) | +5 % - 10 % |

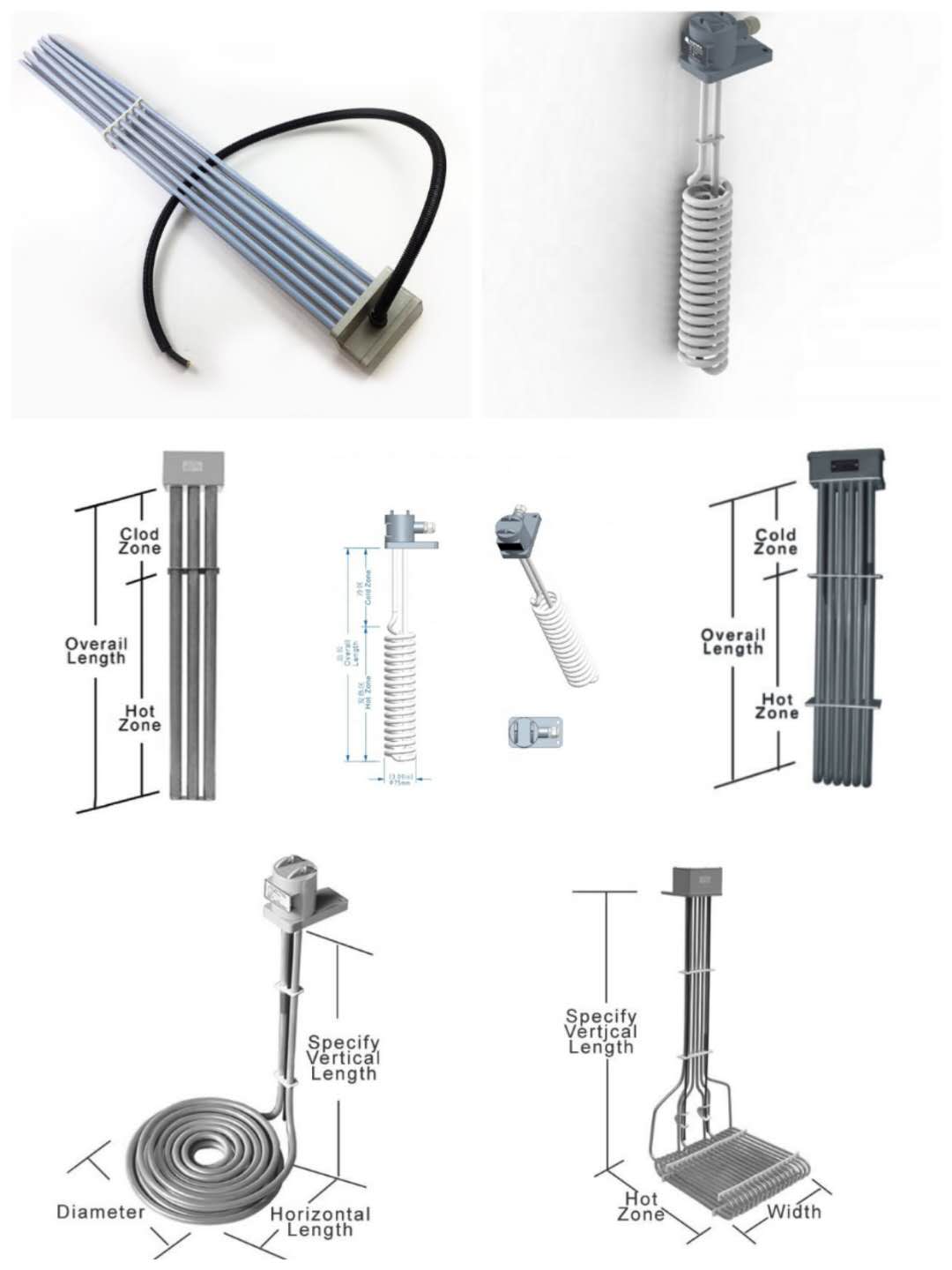

Cold areas | Depends on length and diameter 5-25mm |
