Product Detail
|
Sheath Material |
Stainless steel/ Iron/ Incoloy 800,840/ Titanium |
|
Insulation material |
High-purity Mgo |
|
Reisistance wire element |
Ni-Cr/ FeCr |
|
Dimensional data |
Customized |
|
Terminations |
Threaded stud/ Quick connect/ Flexible lead wires |
|
Shape |
Customized |
|
Fin type |
Round fin or square shape fin |
|
Roud fin height |
5-10mm available |
|
square shape fin size |
25*50mm or 40*80mm |
|
Fin material |
Stainless steel/ Iron |
|
Product Keywords |
Straight finned air tubular heater element for load bank |
Note:
1.We support OEM order,and print Brand or Logo on surface.
2.We can custom electric heaters specially (According to your size,voltage,power etc.)
NOTICE
The two most critical factors that affect the durability of a tubular heater are:
1. The sheath material of the tubular elements.
2. Watt density, flow velocity, outlet temperature.
The sheath material type of a tubular heater depends on the operating temperature and the corrosivity of the medium within which the heater will operate. The watt density distribution on the surface of a tubular heater is critical for two reasons. First it determines the temperature that a heating element sheath will attain within the conditions that the heater is subjected to. The second reason is that every material has a specific maximum watt density that it can tolerate during its heating cycle.

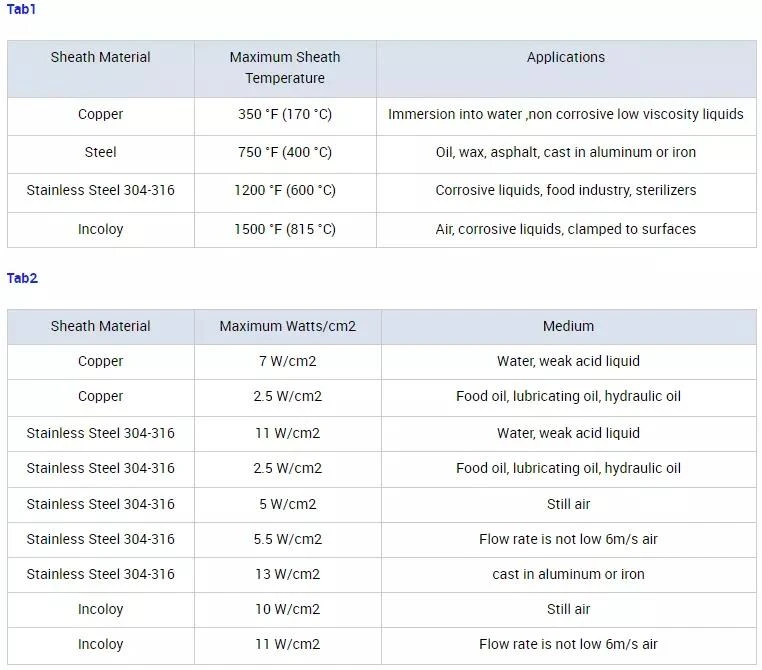

Tab1 : list various sheath materials, maximum allowable temperatures and mediums within which they are recommended to operate.
Tab2 : list recommended maximum watt densities and medium for different materials.
