Flange Water Heater Immersion Heater Heating Element
Shenglong produce a varied range of flange immersion heater element for direct immersion into water, oils, resins, food stuffs and many other liquids and gasses. A standard electric immersion heater consists of a number of robust hairpin shaped tubular heating elements welded with a flange.This type of unit gives simple, low cost installation, 100% heating efficiency generated within the solution, and minimum resistance to the circulation of solutions to be heated.
Material ：SUS304,316,321,Incoloy 800
Voltage：240V or customized
Wattage：2400W or customized
Tube diameter：8mm or as customer requested
Length: customized
Flange: 63.5x63.5mm or customized
All specifications can be customized as customer request.
Sheath Dia. ±0.15mm | 6.4 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 |
Sheath Length Max. (mm) | 6000 | 6000 | 6500 | 6500 | 7000 | 7000 | 7000 | 7000 | 7000 |
Maximum Voltage | 250 | 277 | 480 | 550 | 550 | 550 | 550 | 550 | 550 |
Wattage Tolerance | +5% -10% | ||||||||
Resistance Tolerance | +10% -5% | ||||||||

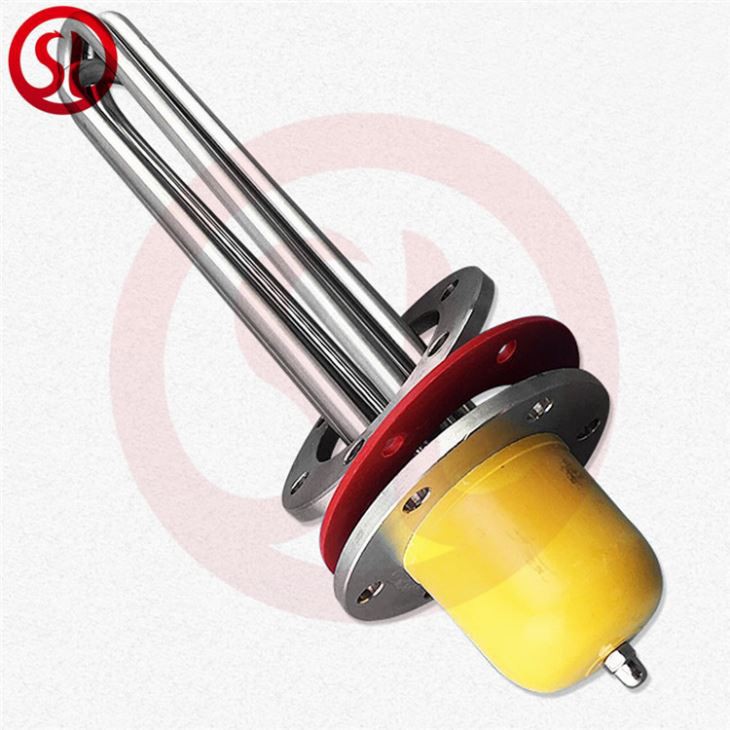

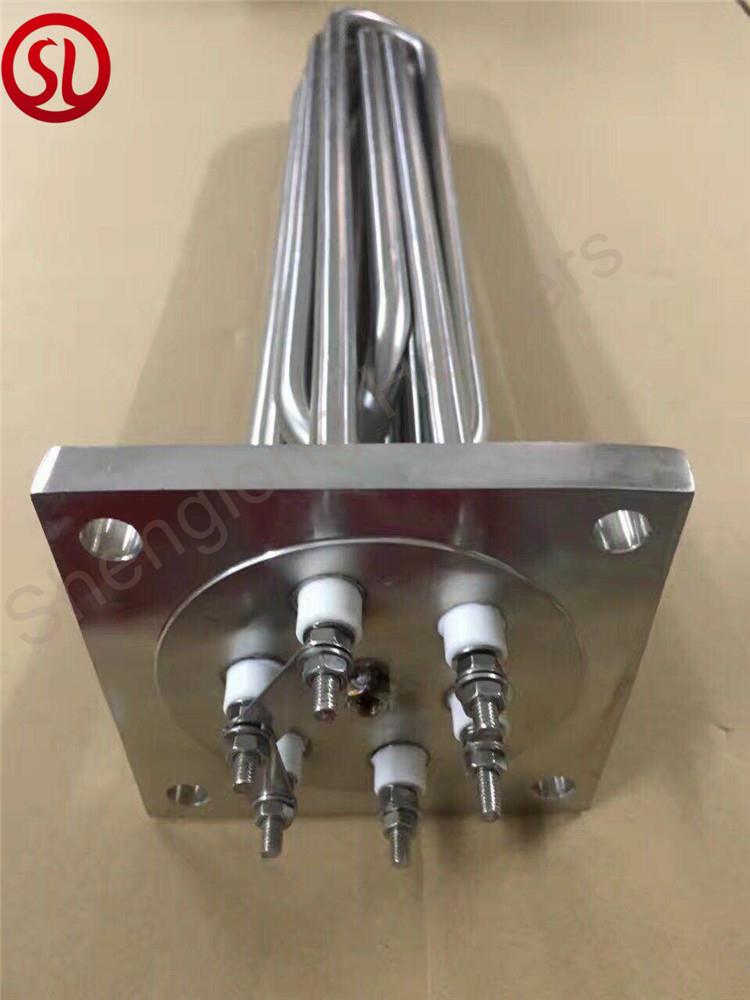

Flange immersion heater product show:
Application of flange immersion heaters:
1. Heating heat transfer fluids
2. Heating medium and lightweight oils.
3. Heating water in tanks.
4. Pressure vessels.
5. Freeze protection of any fluids.
6. Food processing equipment.
7. Cleaning and rinsing equipment.
8. Beverage equipment
9. Brewing&Distillery
Immersion heaters work shop:
Contact US:
Shenglong Heating Electric Technology Co.,Ltd is a heating element manufacturers and has been focused on the production of industrial heating elements for over 20years, which is well-known as one of the leading manufacturers and suppliers of 1.8mm-35mm or big size cartridge heaters . In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. If you are interested inindustrial immersion heater.screw plug immersion heaters.immersion water heater. please feel free to contact us.
