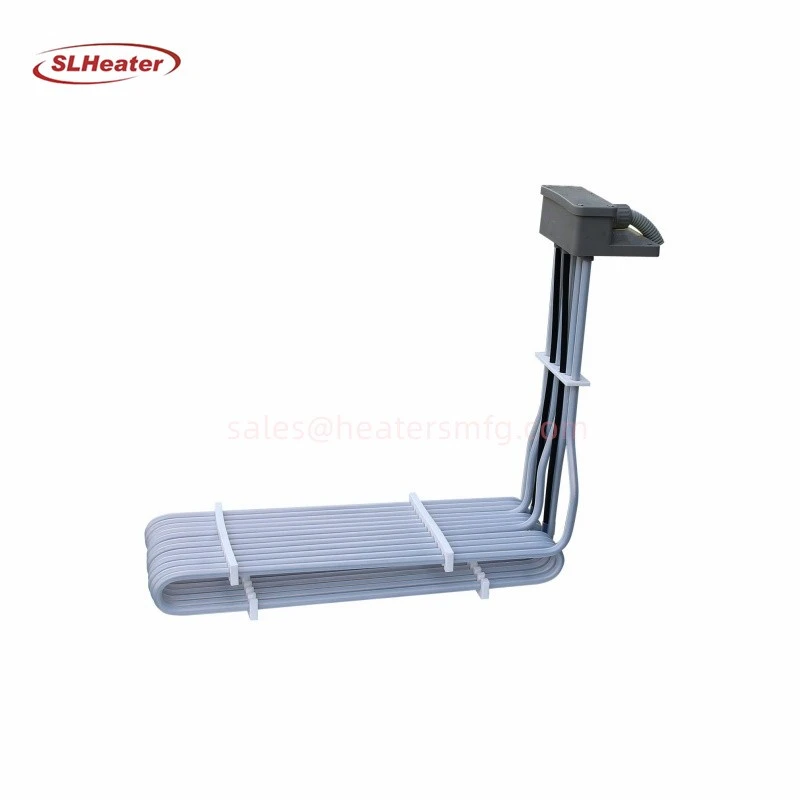

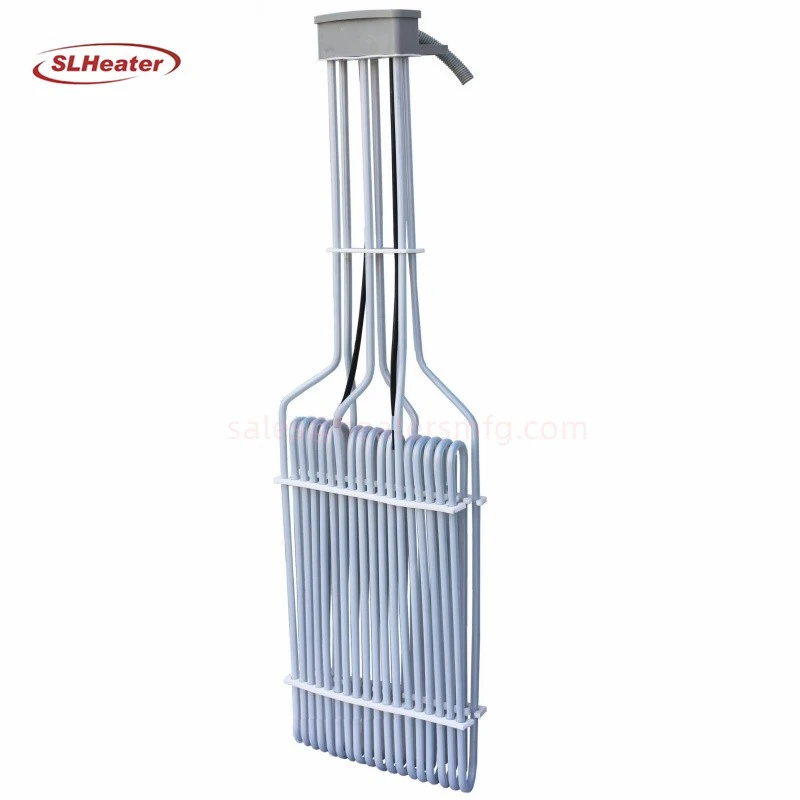

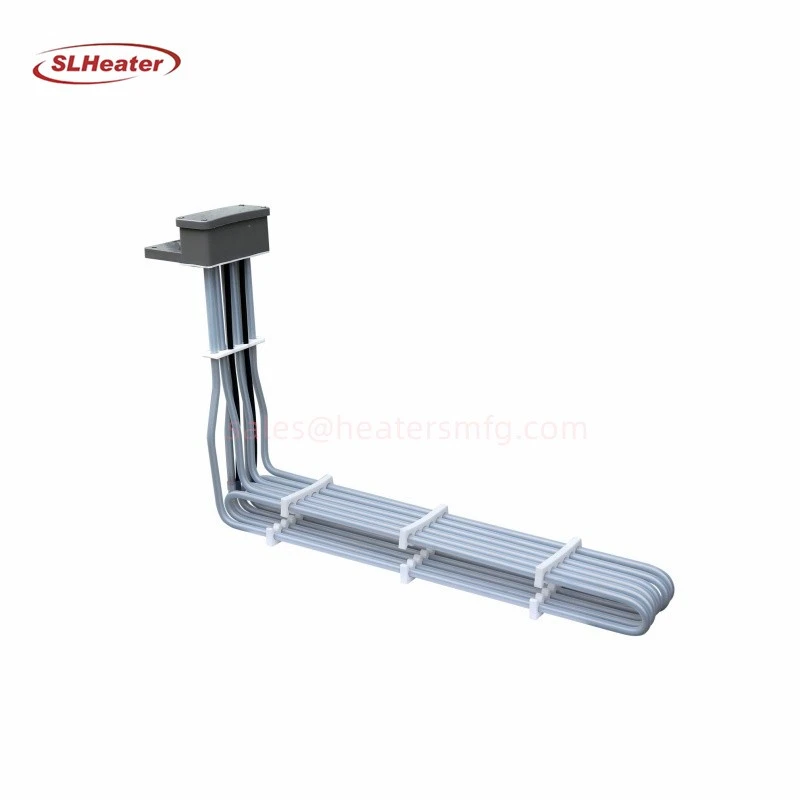

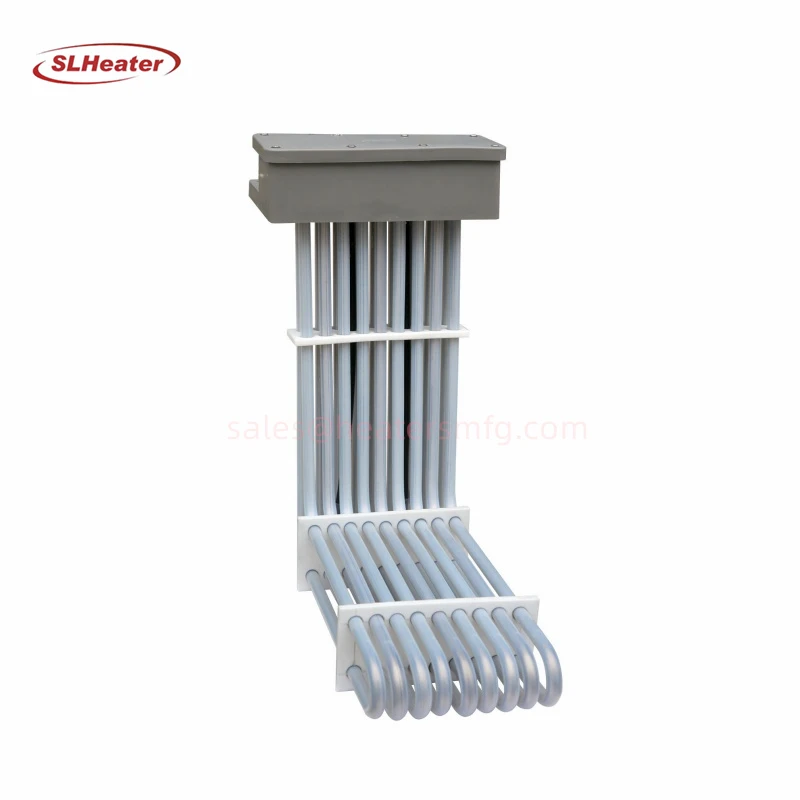

3HXOL PTFE Heater: The Ultimate Solution for Fluoropolymer Electric Immersion Heating
Engineered for Extreme Chemical Resistance & Purity
Introducing the 3HXOL PTFE Heater, the definitive choice for reliable, long-lasting heat transfer within aggressive chemical environments using fluoropolymer-lined tanks, vessels, and pipes. Specifically designed for Fluoropolymer Electric Immersion Heaters (such as those lined with PFA, FEP, or PTFE), our heater delivers unparalleled performance where standard metal sheathed elements fail.
Unmatched Corrosion Resistance:
Pure PTFE Sheath:The heating element is encased in high-purity, seamless PTFE (Teflon™) fluoropolymer, offering exceptional resistance to virtually all strong acids, bases, solvents, and oxidizing agents. Say goodbye to corrosion, pitting, and contamination.
Ideal for Fluoropolymer Systems:Perfectly compatible with PFA, FEP, ETFE, and PTFE linings, ensuring no galvanic corrosion or incompatibility issues that can damage sensitive tank linings.
Superior Performance & Reliability:
High Watt Density:Efficient heat transfer directly into the process fluid, even in demanding applications.
Exceptional Dielectric Strength: Outstanding electrical insulation properties for safe operation in conductive media.
Non-Stick Surface:The inert PTFE surface minimizes scaling and fouling, simplifying maintenance and cleaning.
High Purity:Essential for critical processes in semiconductor, pharmaceutical, and high-purity chemical manufacturing where metal ion contamination is unacceptable.
Robust Construction & Safety:
Stainless Steel Core & Terminal Housing: Provides structural integrity and protects electrical connections from the environment.
Seamless PTFE Welding:Ensures a leak-proof barrier between the heated media and the internal components.
Over-Temperature Protection: Optional thermowells for thermostats or RTDs enhance process control and safety.
Designed for Your Application:
The 3HXOL PTFE Heater is highly customizable. Choose from various:

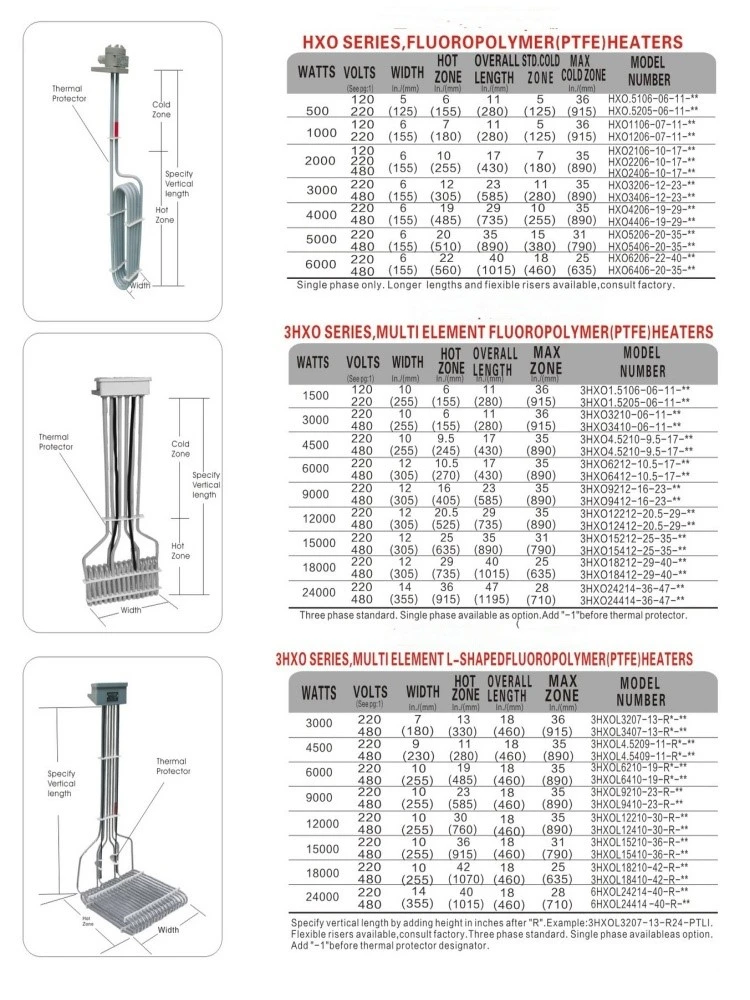

* Voltages & Wattages
* Sheath Diameters & Immersion Lengths
* Terminal Enclosure Types (NEMA 4X standard)

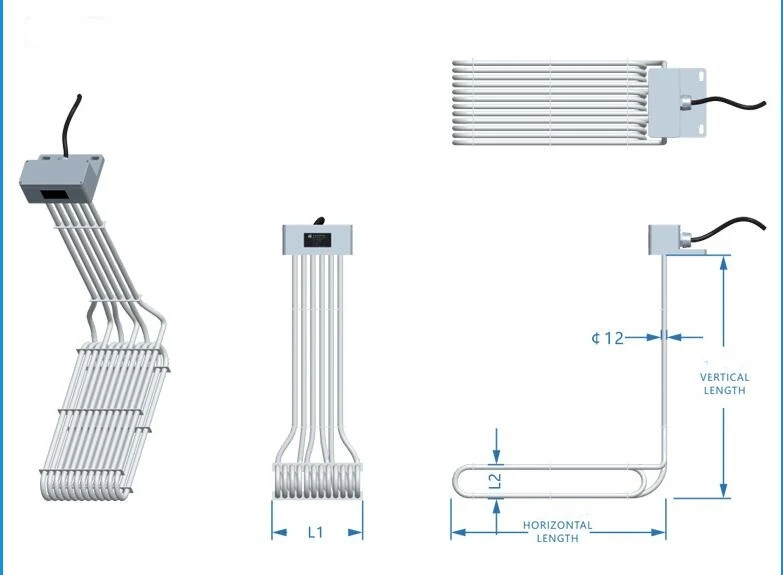

* Bending Configurations (Straight, "L", "U", "O" ring)
* Process Connections (Flanged, Threaded, Tri-Clamp)
Ideal Industries:
* Chemical Processing (Acid baths, etching, plating, anodizing)
* Semiconductor Manufacturing (Ultra-pure water, wet benches, chemical baths)
* Pharmaceutical & Biotechnology (API synthesis, CIP/SIP systems)
* Metal Surface Treatment
* Environmental (Scrubber solutions, waste treatment)
* Any application requiring heating within fluoropolymer-lined equipment
FAQ:
Q1. What chemicals can the 3HXOL PTFE Heater safely handle?
A1：The PTFE sheath offers exceptional resistance to nearly all strong acids (hydrochloric, sulfuric, nitric, hydrofluoric, chromic), strong bases (caustic soda, potassium hydroxide), aggressive solvents, halogens, and oxidizing agents. Always verify compatibility charts for specific, highly reactive mixtures or temperatures.
Q2.What is the maximum operating temperature for this heater?
A2:The standard 3HXOL PTFE Heater is rated for continuous operation up to 200°C (392°F) at atmospheric pressure. Temperature ratings can be affected by system pressure and the specific fluid being heated. Consult us for high-pressure or higher-temperature requirements.
Q3.Is the 3HXOL Heater suitable for use in high-purity applications (e.g., semiconductors, pharmaceuticals)?
A3:Absolutely. The seamless, non-leaching PTFE sheath and high-purity construction minimize the risk of metallic or particulate contamination, making it ideal for USP Class VI, FDA, and semiconductor-grade processes demanding ultra-pure heating.
Q4.Can this heater be customized for my specific tank or vessel dimensions?
A4:Yes, customization is a key strength. We can tailor the immersion length, sheath diameter, watt density, voltage, bend shape (straight, "L", "U", "O" ring), and process connection (flange, thread, Tri-Clamp) to fit your fluoropolymer-lined equipment precisely.
Q5. How do I install and maintain the 3HXOL PTFE Heater?
A5:Installation involves securely mounting the heater via its process connection into the tank/vessel port, ensuring the PTFE sheath is fully immersed. Electrical connections are made within the terminal housing. Maintenance is minimal due to the non-stick surface; periodic visual inspection for damage and ensuring the terminal housing remains clean/dry is usually sufficient. Avoid mechanical impact or abrasion on the PTFE sheath.
Upgrade your fluoropolymer immersion heating system with the reliability and chemical resistance of the 3HXOL PTFE Heater. Contact us today for a custom solution!
