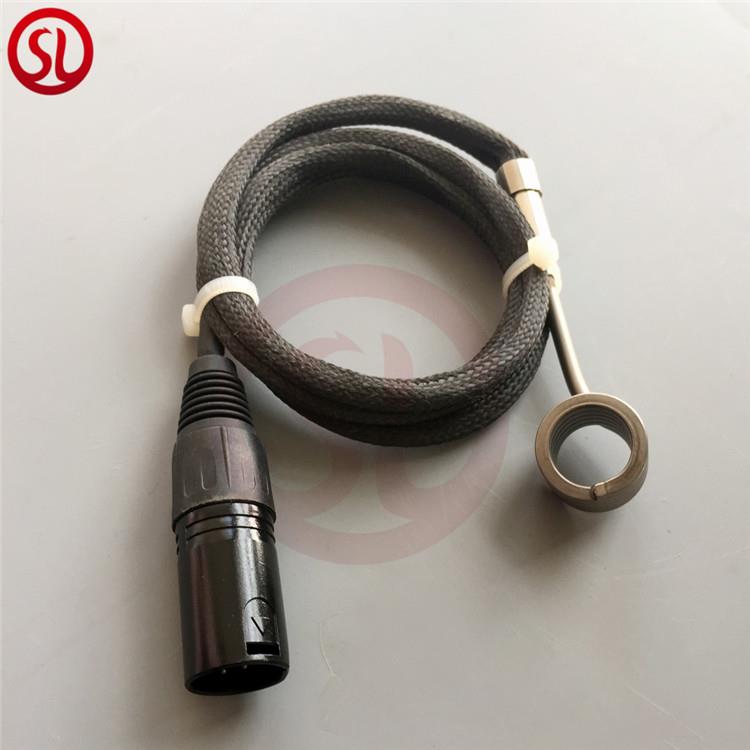

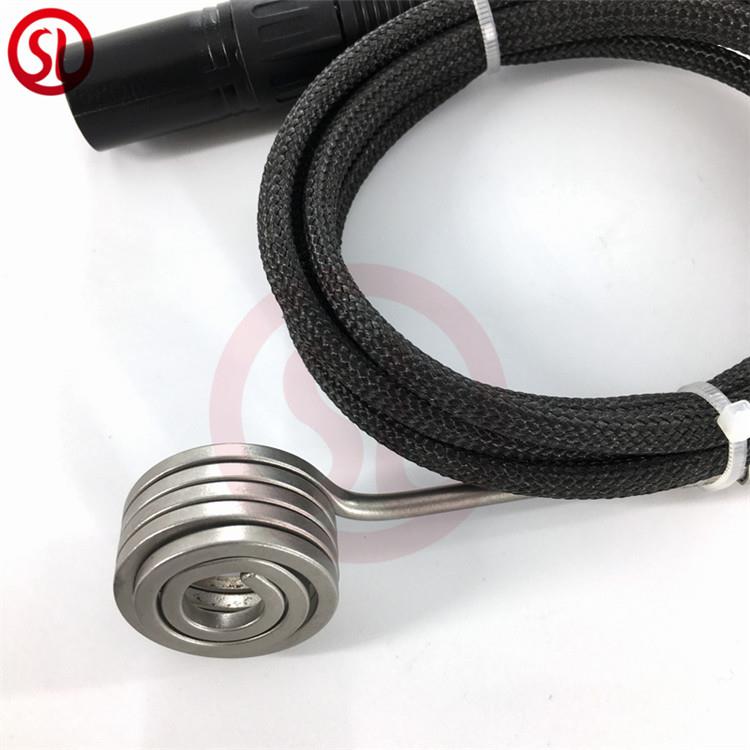

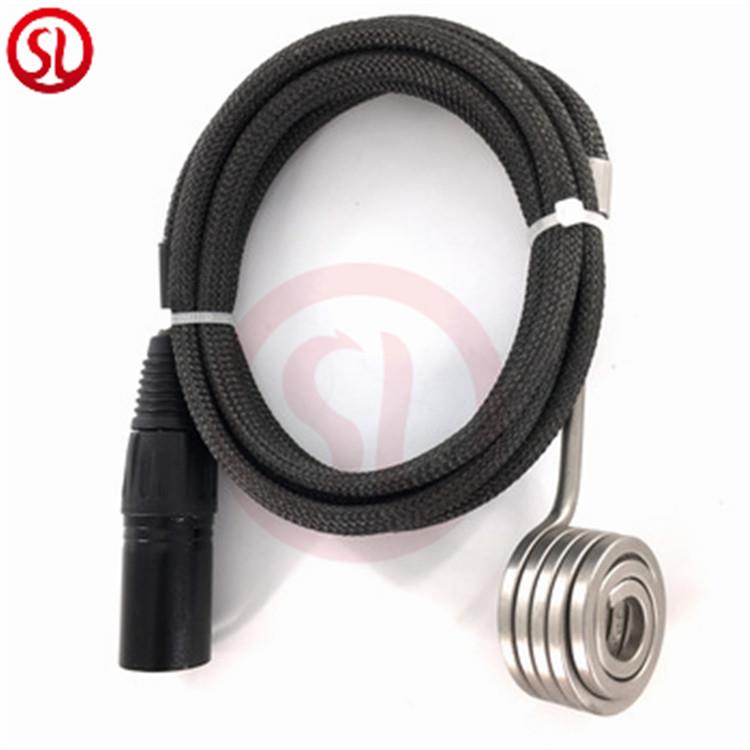

5 Pin Enail Coil Heater
5 Pin Enail Coil Heater are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

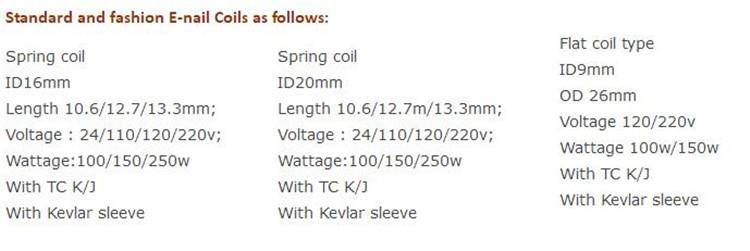

5 Pin Enail Coil Heaterr For Enail specification:
Sheath Material | Cr Ni-Steel for 5 Pin Enail Coil Heater |
Insulation Material | MgO |
Resistance Wire | Ni Cr 80-20 |
Maximum Sheath Temperature | 700°C |
Die Electrical Strength | 800V A/C |
Insulation | >5 M W |
Thermocouple | J type (Standard) or K type |
Length Tolerance (Straight) | 5% |
Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
Resistance Tolerance | + 10% (+ 5% Available Upon Request) |
Unheated Length | 35mm (Standard) |
Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm |
| Coil Length + 1mm |
Cross section for 5 Pin Enail Coil Heater
3.0 x 3.0, 3.30 x 3.30, 3.5 x 3.5, 4 x 4 etc.
4.20 x 2.20, 4.20 x 2.50
Any other cross sections can be customized on request
Application of 5 Pin Enail Coil Heater:
Contact US:
Shenglong Heating Electric Technology Co.,Ltd is a heating element manufacturers and has been focused on the production of industrial heating elements for over 20years, which is well-known as one of the leading manufacturers and suppliers of 1.8mm-35mm or big size cartridge heaters . In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. If you are interested in Enail coil heating element. 5pin Enail Coil Heater.Hot Runner Spiral Coil Heater.XLR Plug Spring Coil Heater For Enail.please feel free to contact us.
